AWS Transit Gateway

AWS Transit Gateway is a centralized routing hub that connects multiple VPCs, VPNs, and on-prem networks through a single, scalable, highly available service. Instead of building many VPC-to-VPC peering links, you attach each network to the Transit Gateway and let it handle all routing between them.

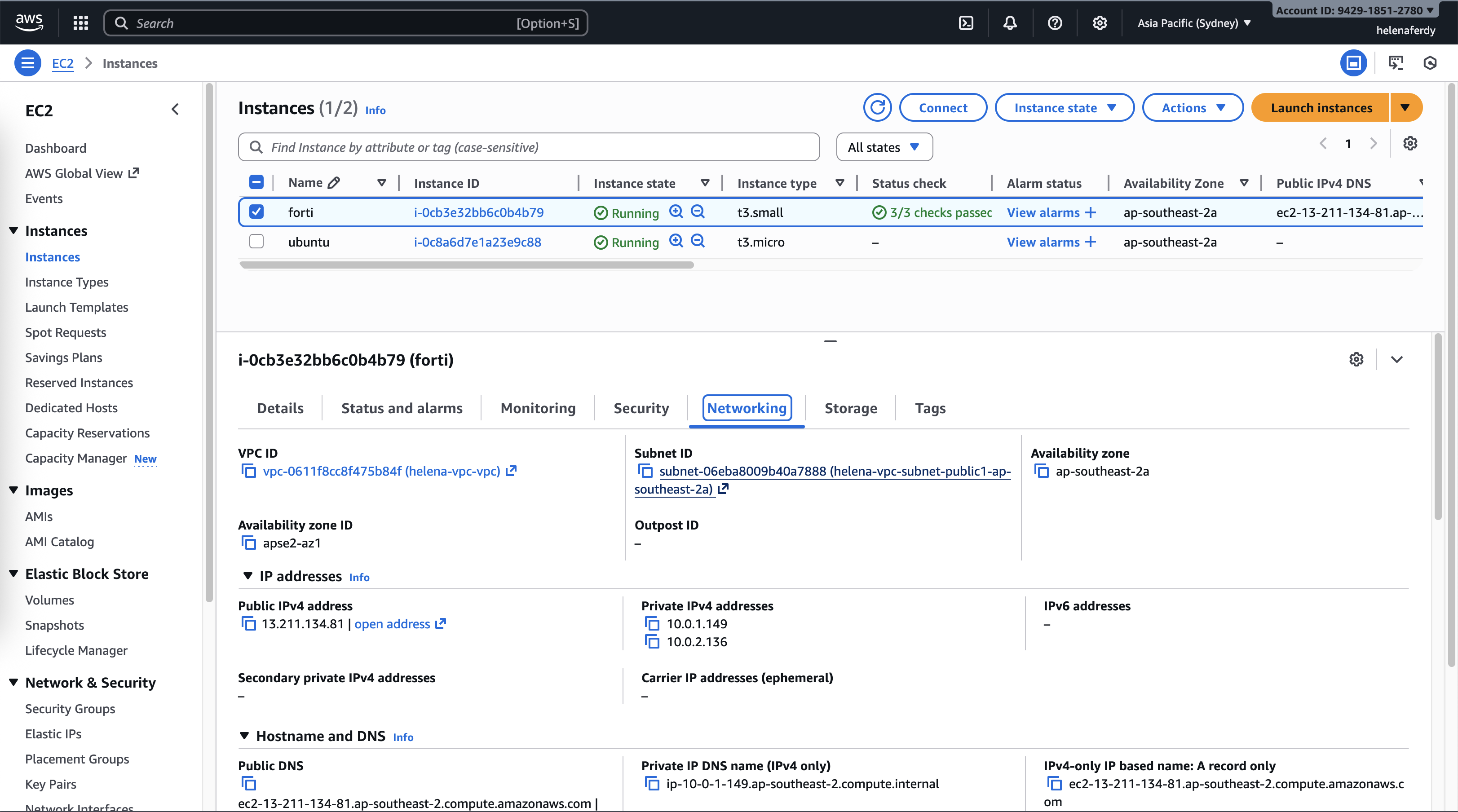

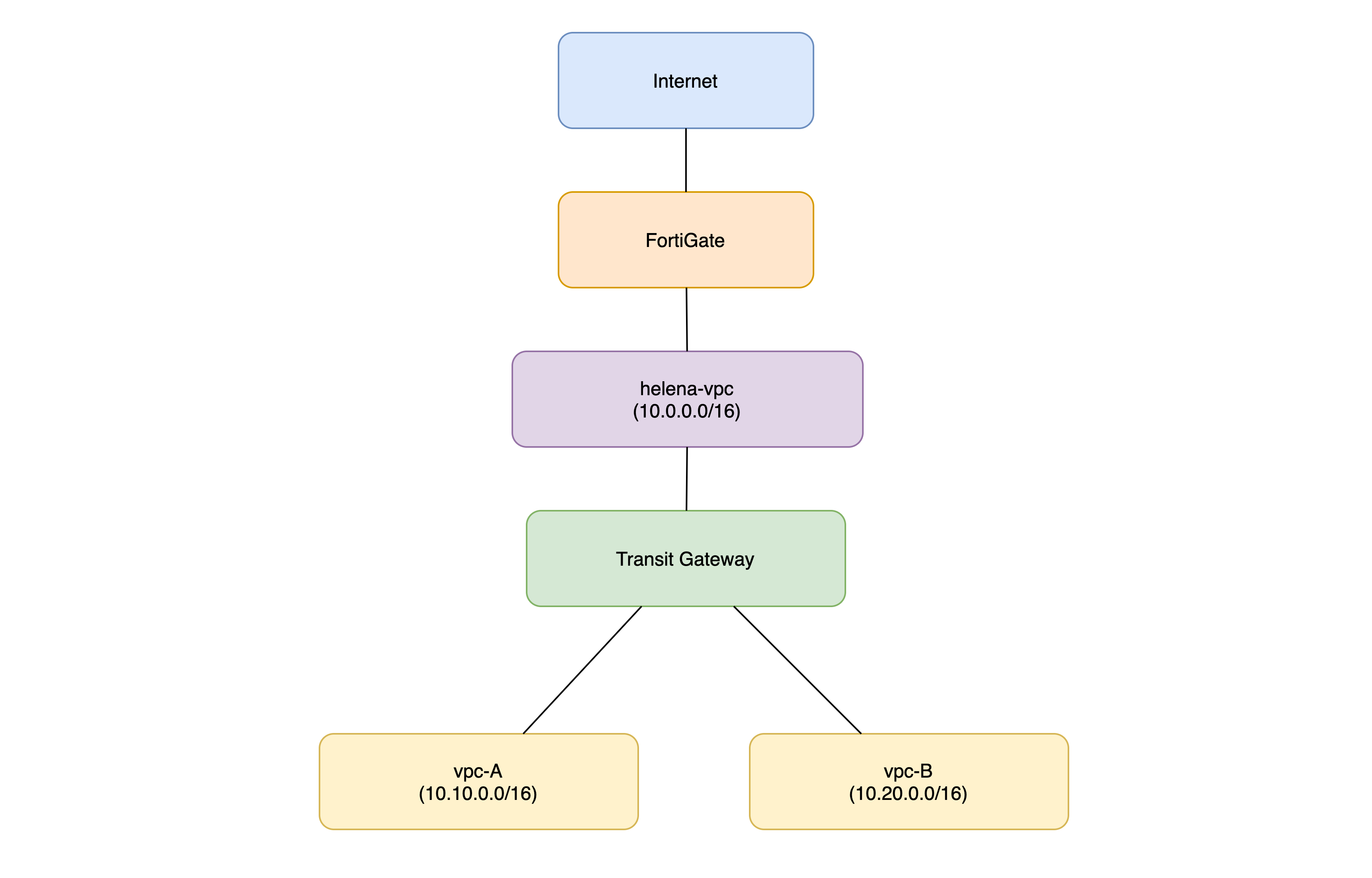

Here we are continuing from this AWS with Fortigate Lab and we plan to add 2 more VPSc that we will interconnect using Transit Gateway

Configuring VPC

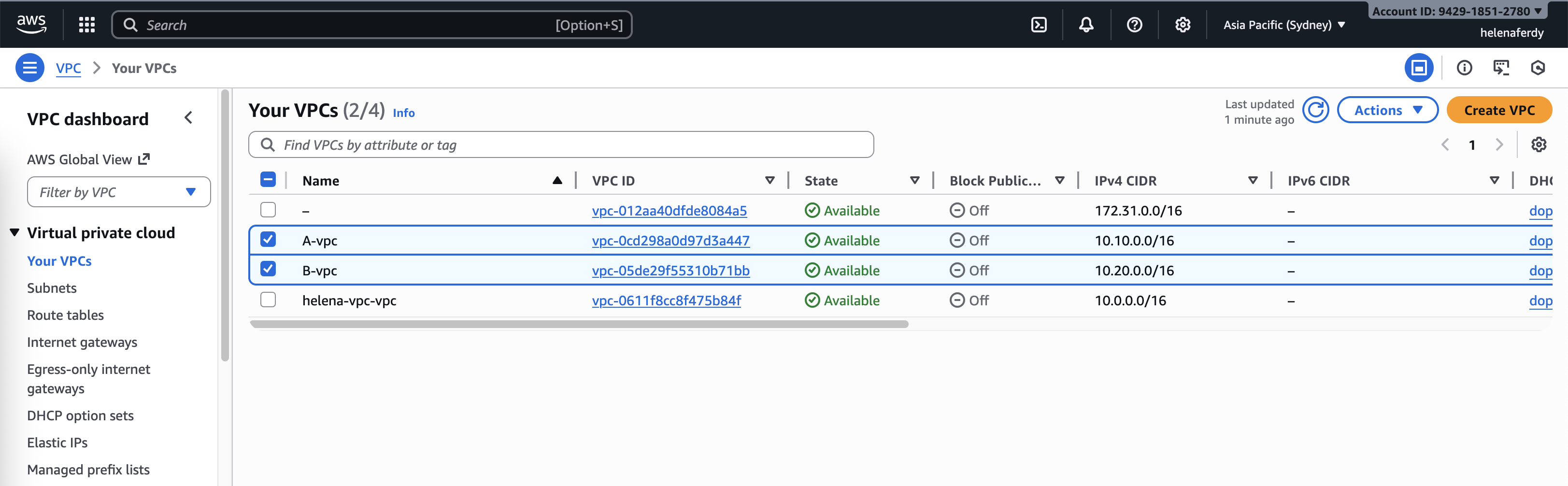

We add 2 more VPCs, A-VPC and B-VPC on top of already existinf helena-VPC

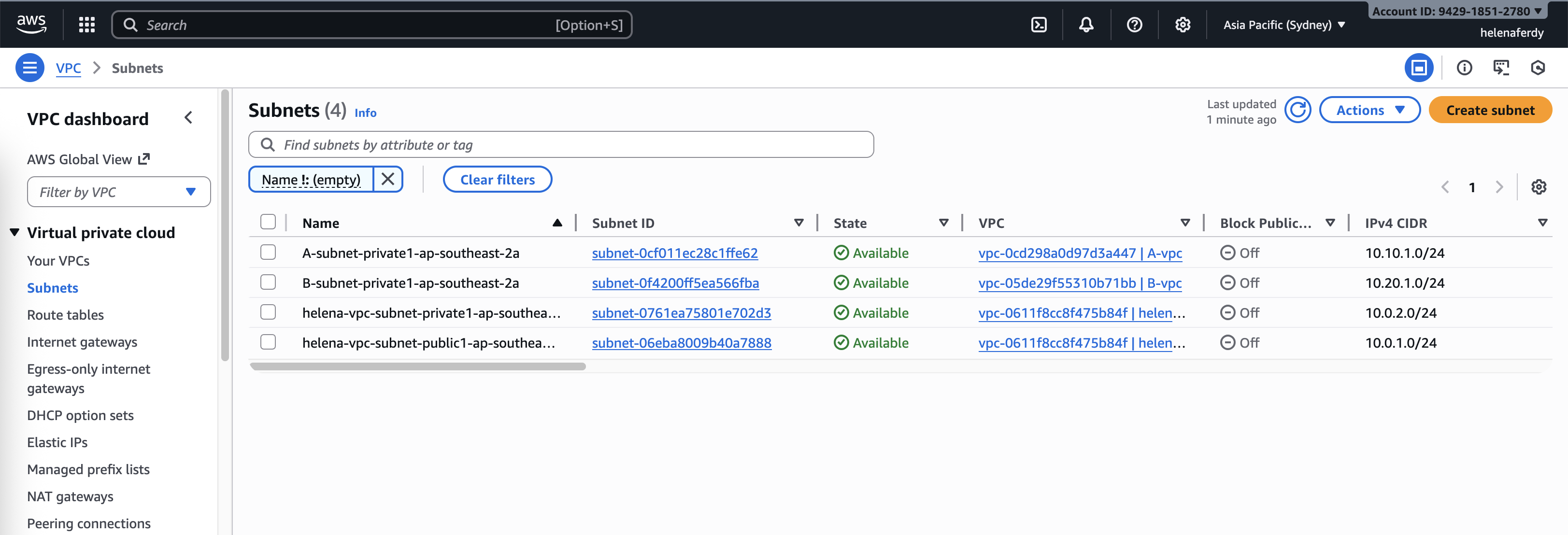

Then we add its respective subnets, where A & B VPC will only have private subnets with no direct internet connection

We make sure these new VPCs don’t have default gateway yet, we’ll configure it later

Configuring Transit Gateway

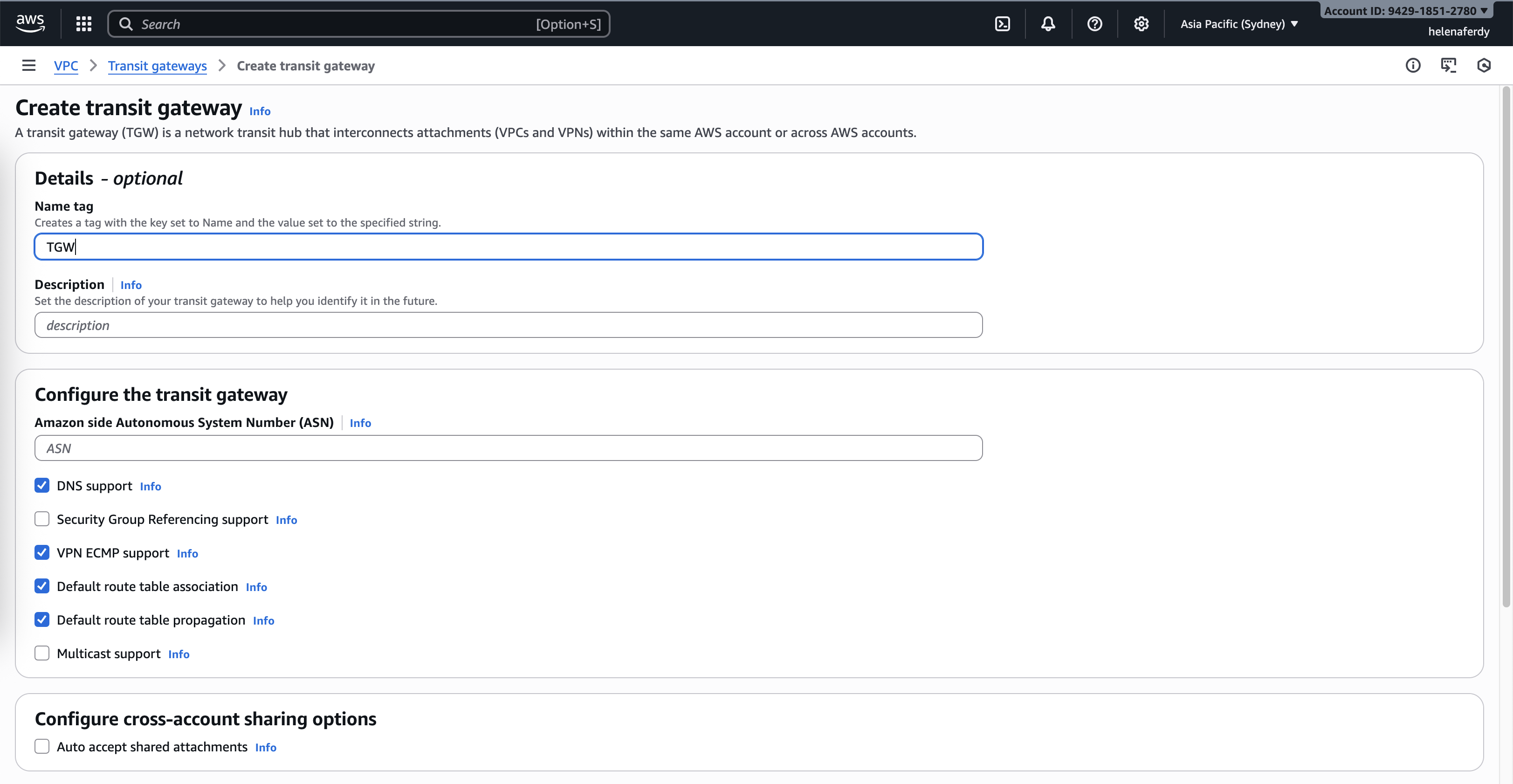

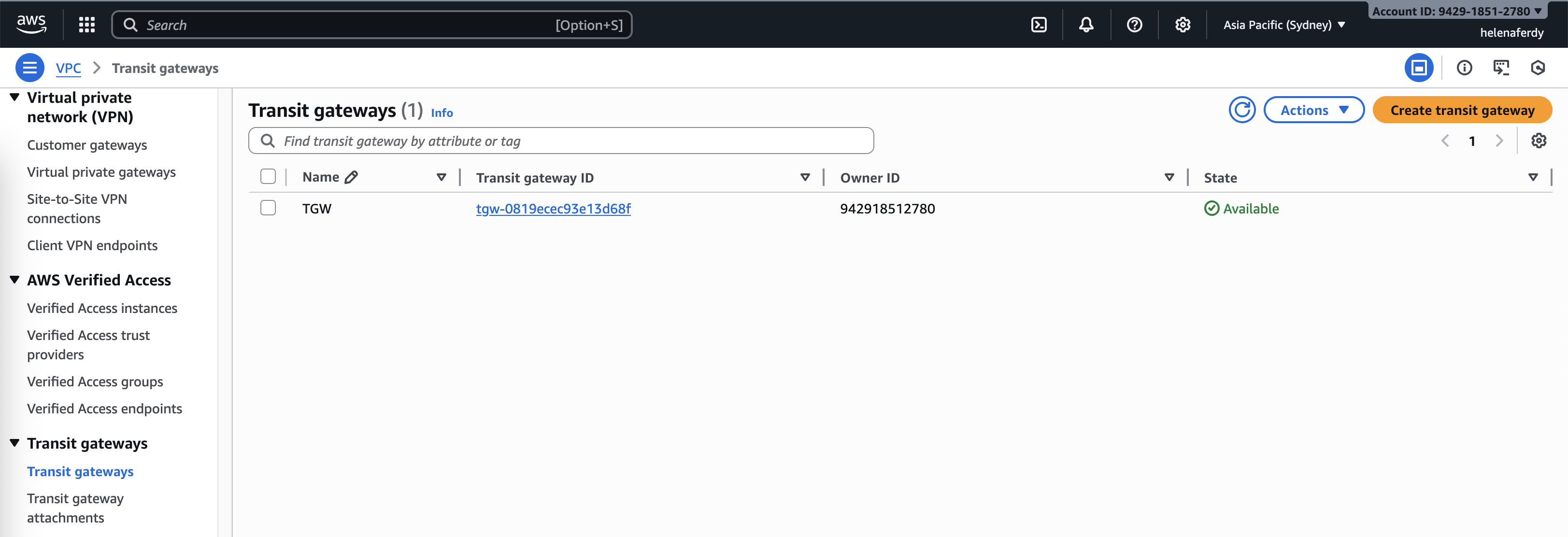

On VPC » Transit Gateways » Create Transit Gateway with all default values unchanged

Then we create Transit Gateway Attachments for each VPC

A Transit Gateway attachment is the Layer-3 link between a resource and the Transit Gateway. Common types: VPC attachment, VPN attachment, Direct Connect attachment, and Peering attachment. Each attachment creates an interface on the Transit Gateway that can send/receive routes and forward traffic.

First we create attacment for VPC-A and attach the the VPC and its subnet

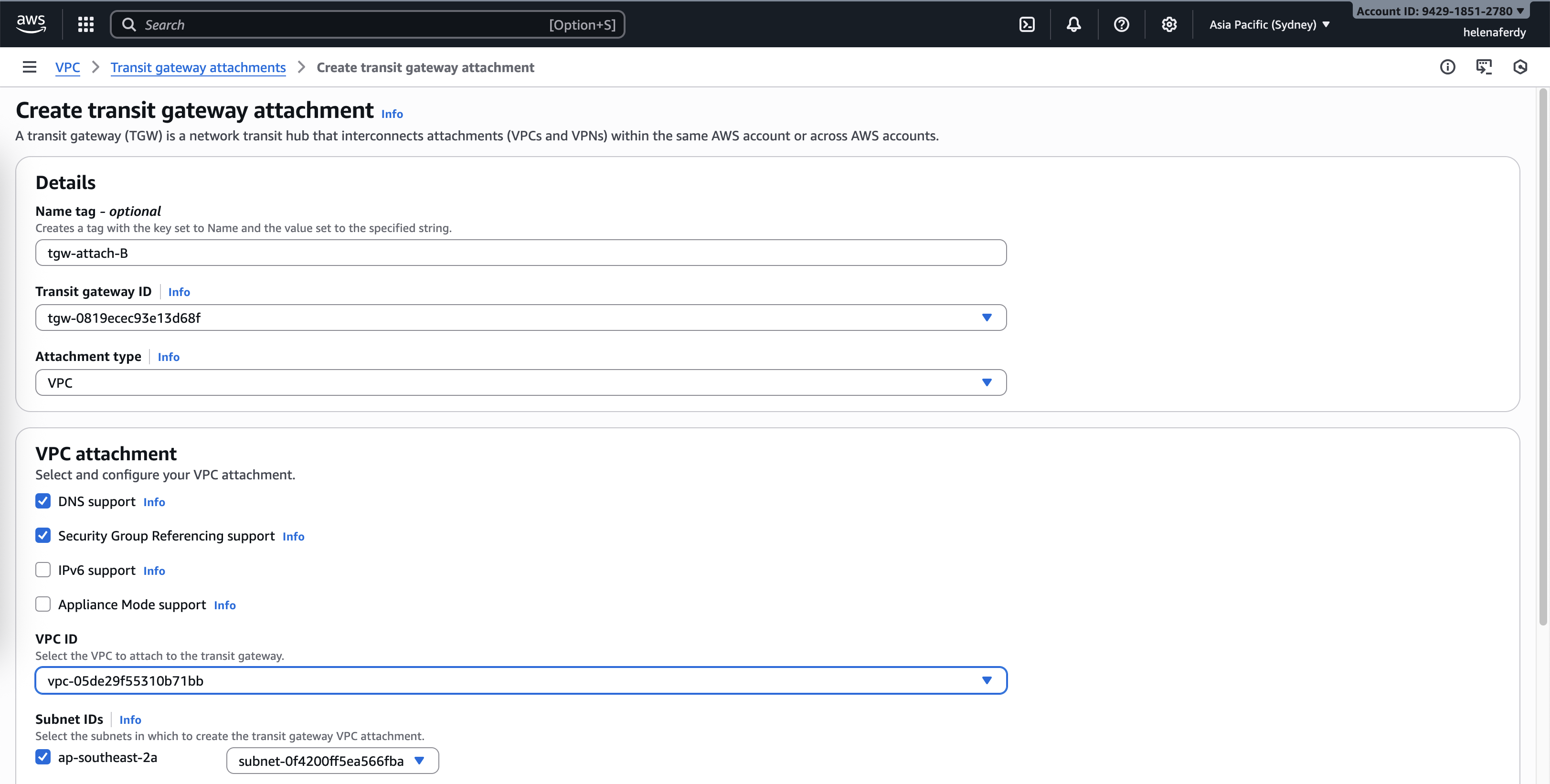

Same goes with VPC-B

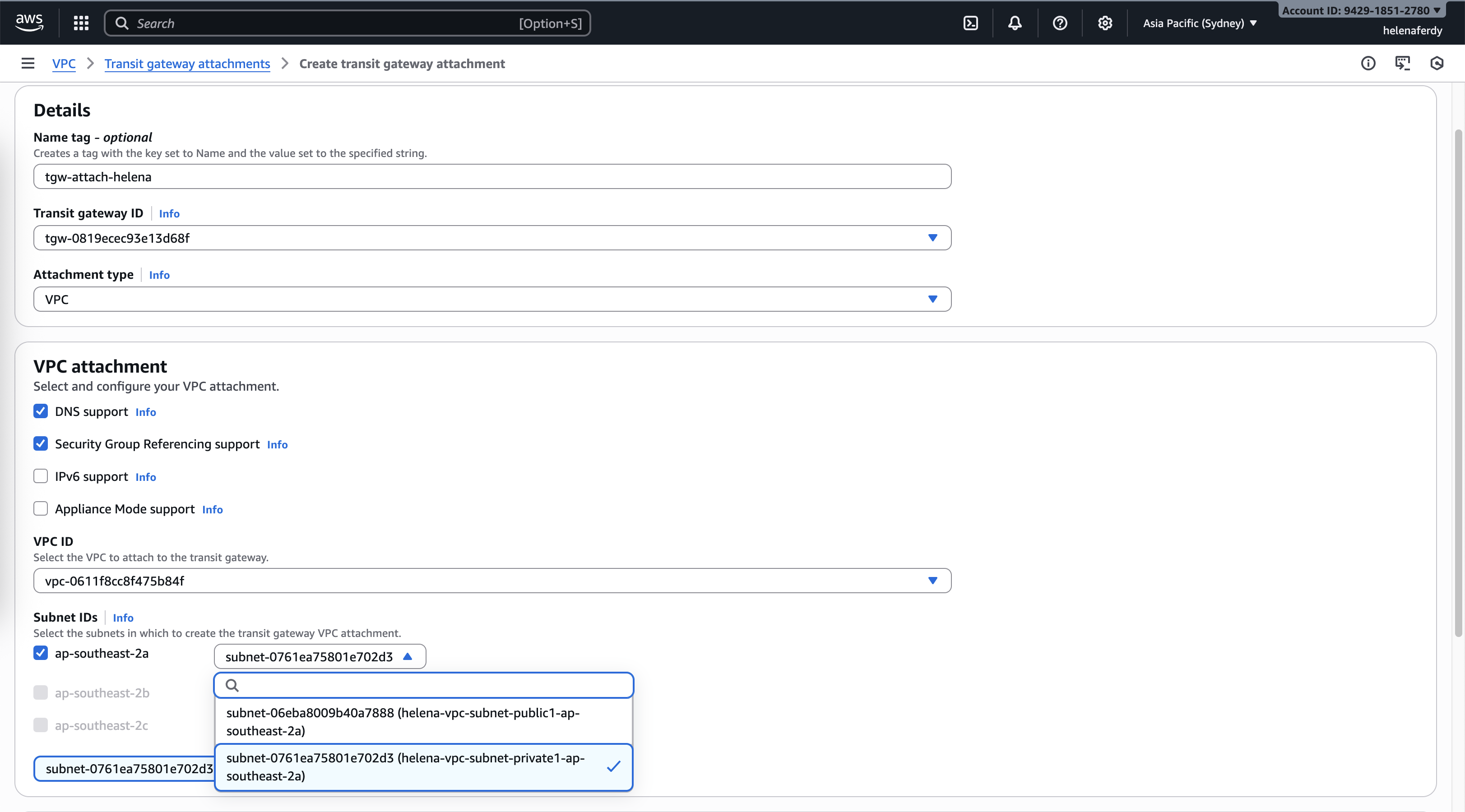

And VPC-Helena where here we will attach the only the private subnet because thats the one facing the Transit Gateway

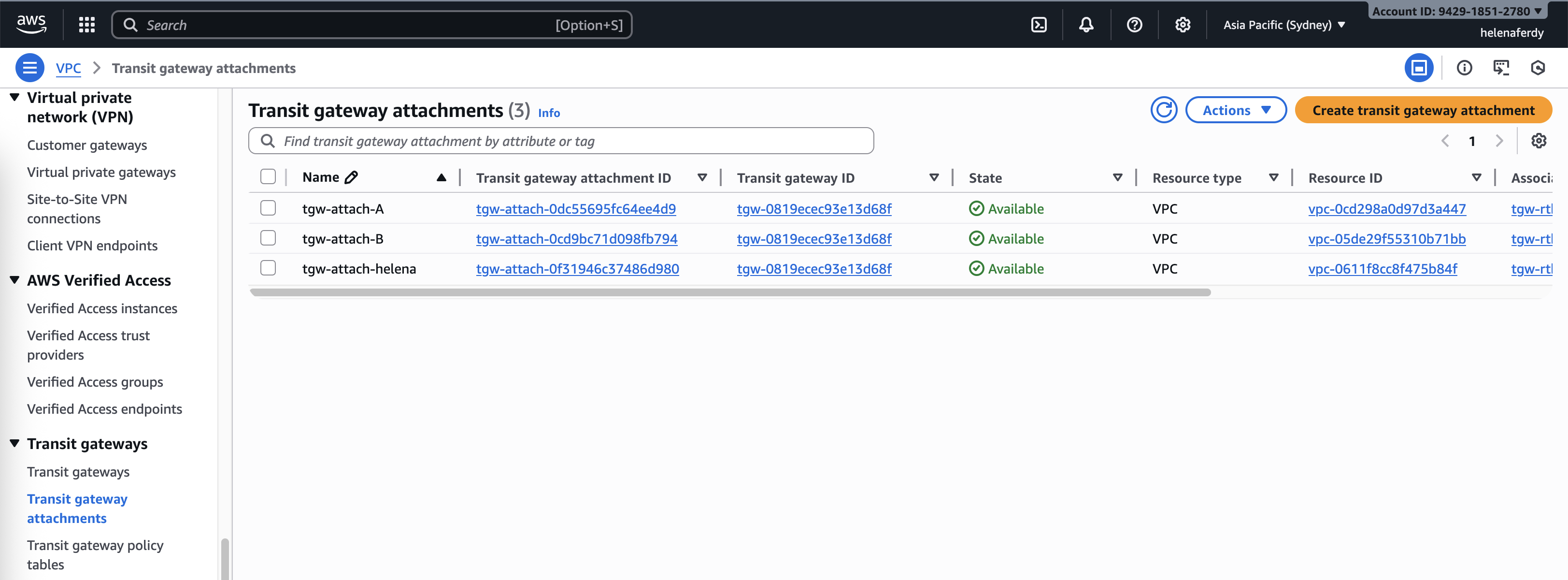

Here after all attachments are configured

Configuring Routing

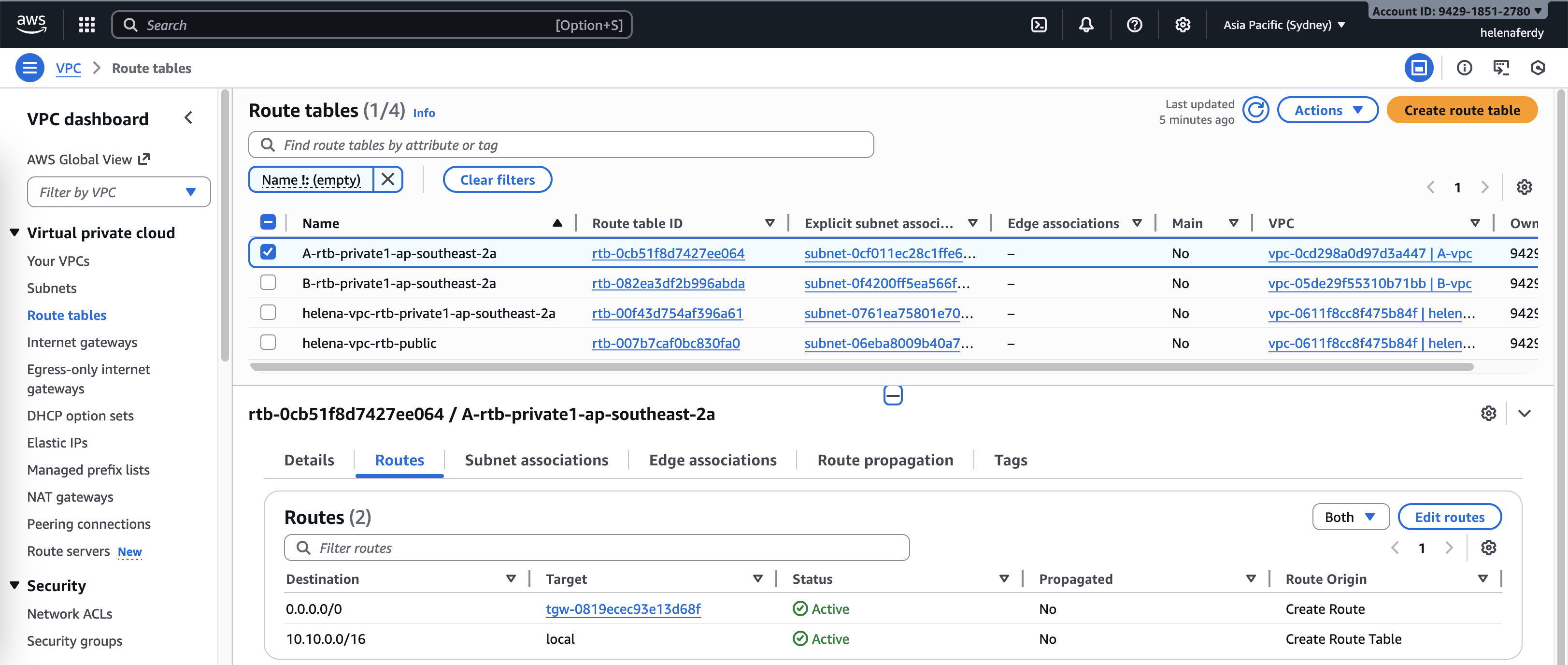

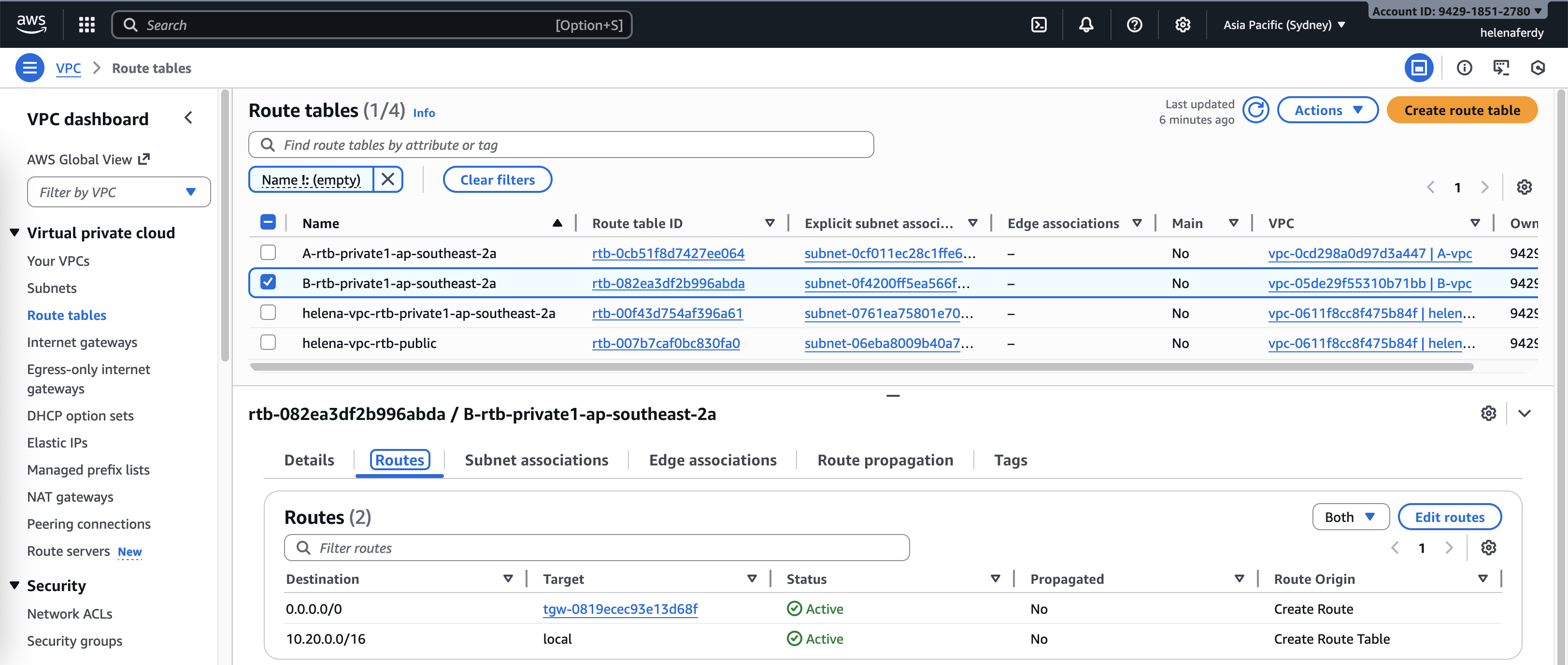

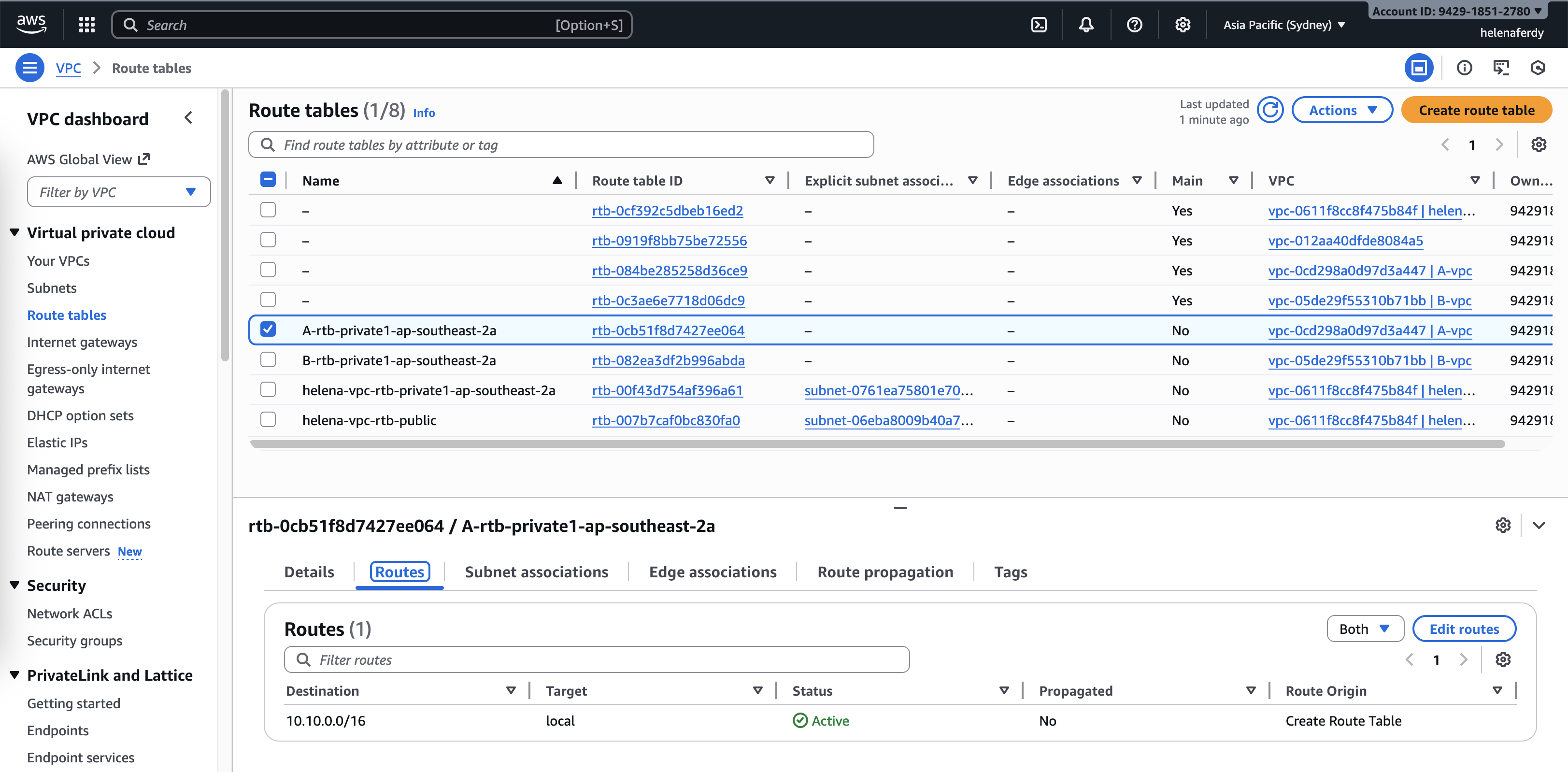

Each VPC holds their own routing table, we need to give them routes to reach the transit gateway, for VPC A & B, we simply add default route to pass all traffic to the Transit Gateway

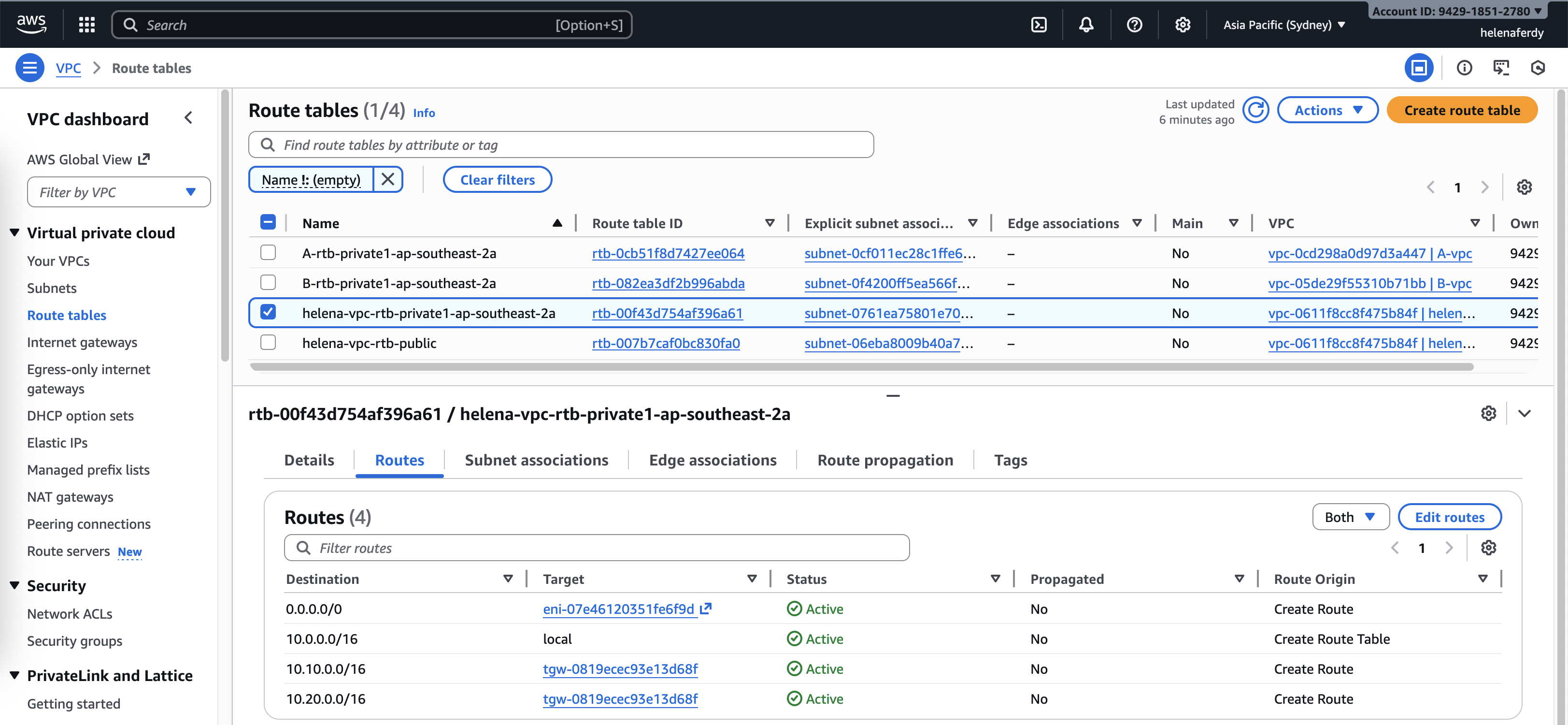

For Helena VPC’s private subnet, we need to make sure it can reach VPC A & B subnets through Transit Gateway, and pass the default route to the Fortigate Firewall

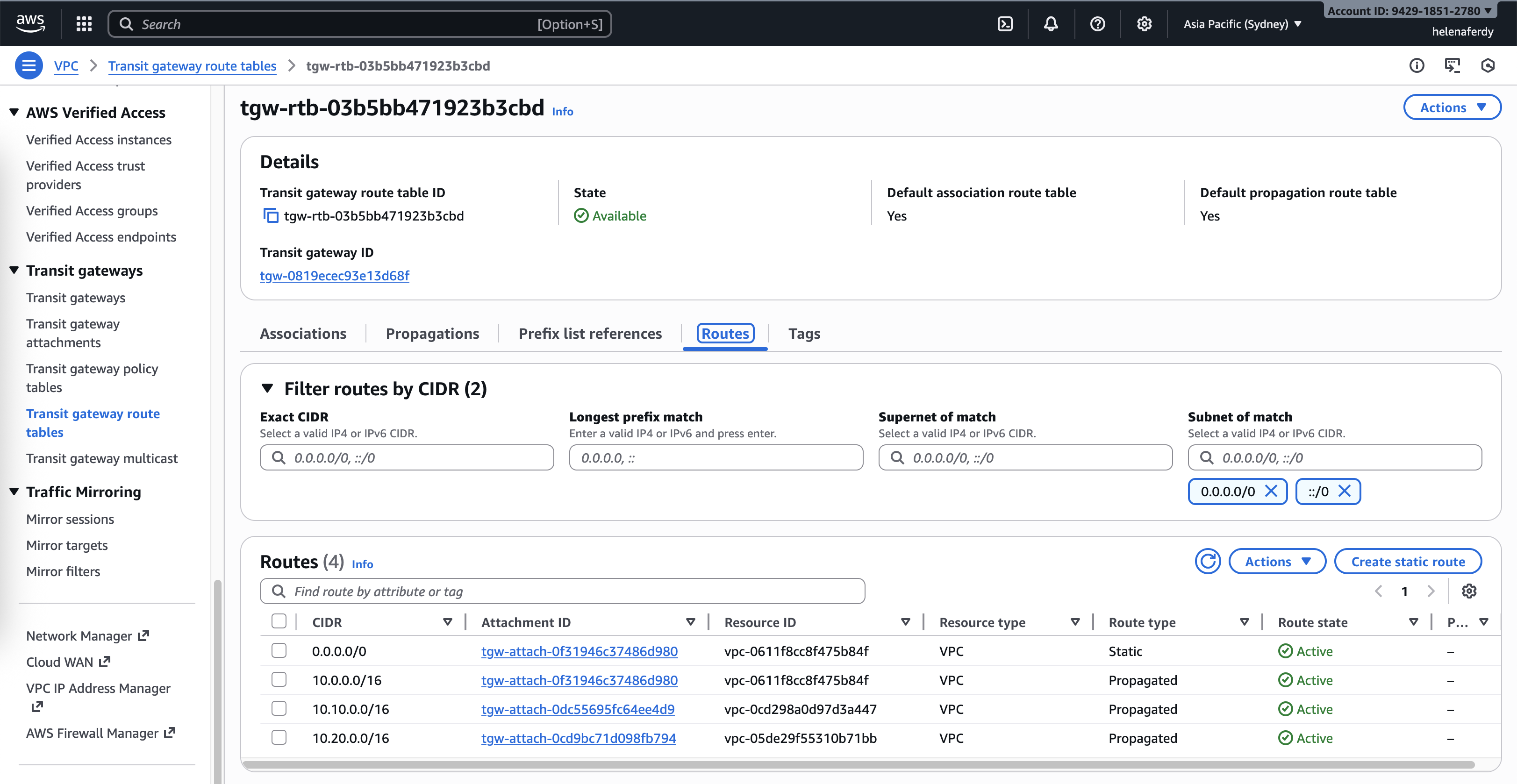

And lastly we need to configure routes on Transit Gateway as well, here we tell it to pass the default route traffic to helena-vpc’s TGW attachment

Testing

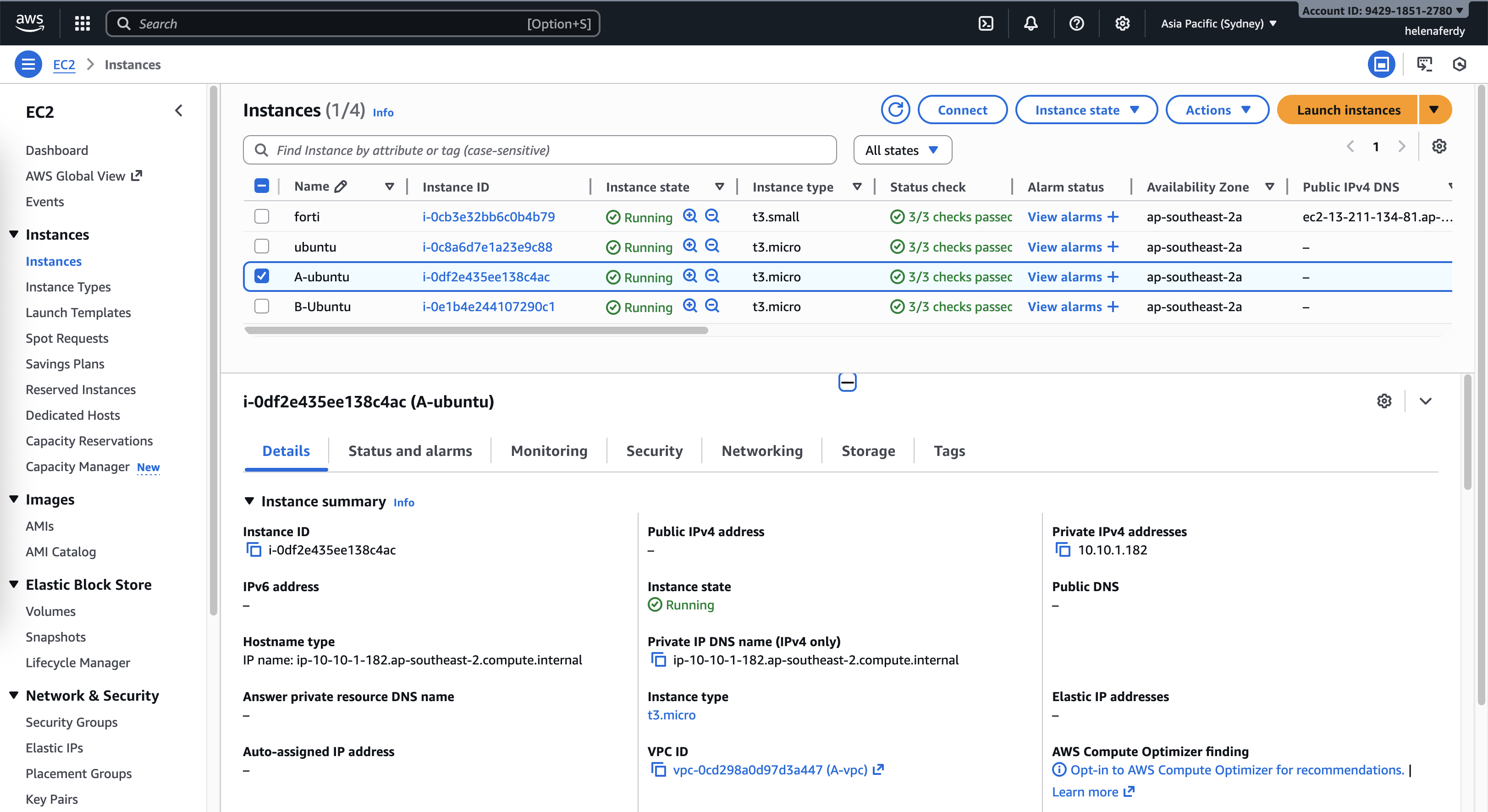

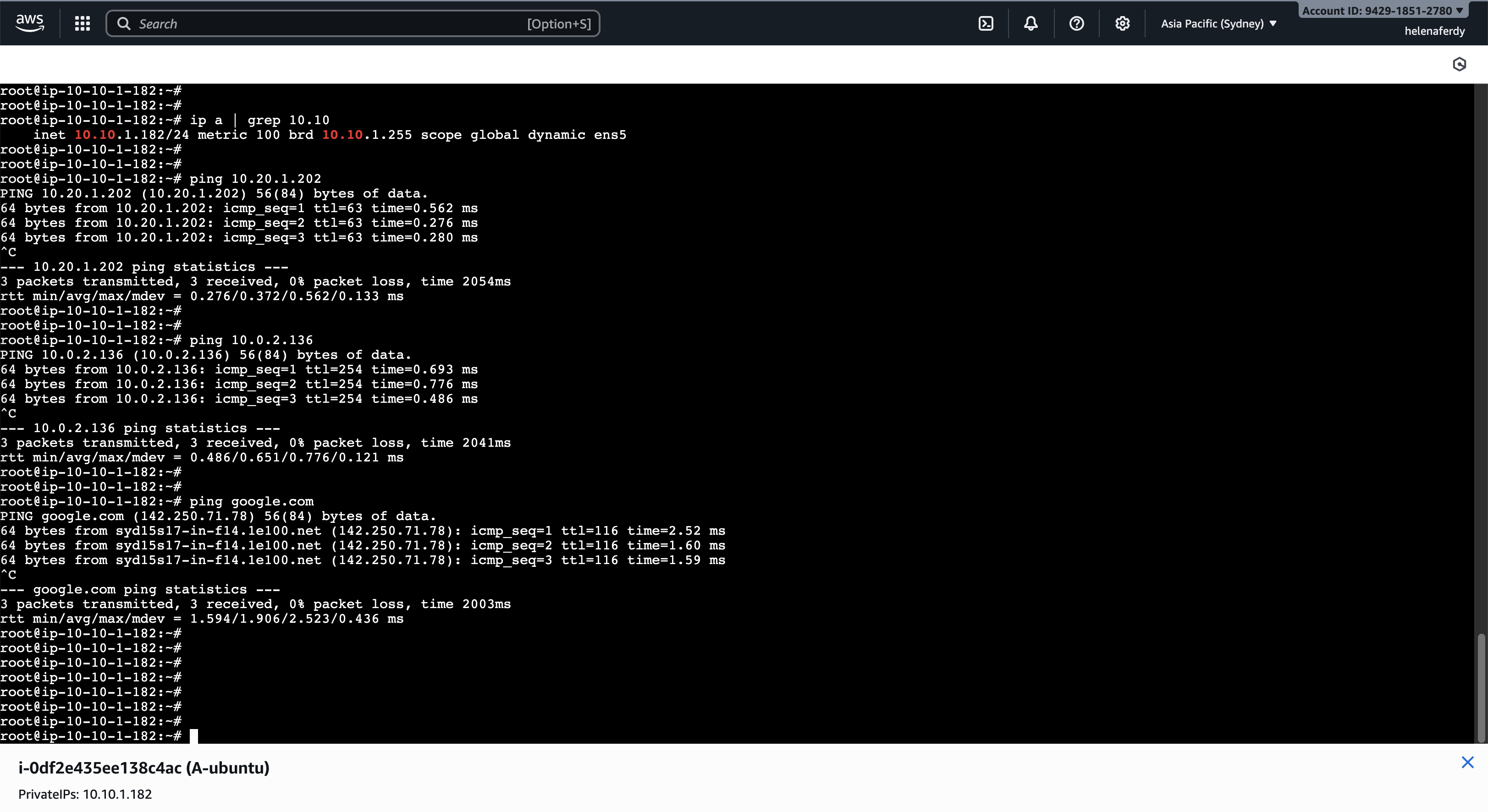

Here we spin up a small linux VM on VPC A with ip of 10.10.1.182

We confirm that this host can access host on VPC B, VPC Helena, as well as to Internet though VPC Helena and the firewall configure there

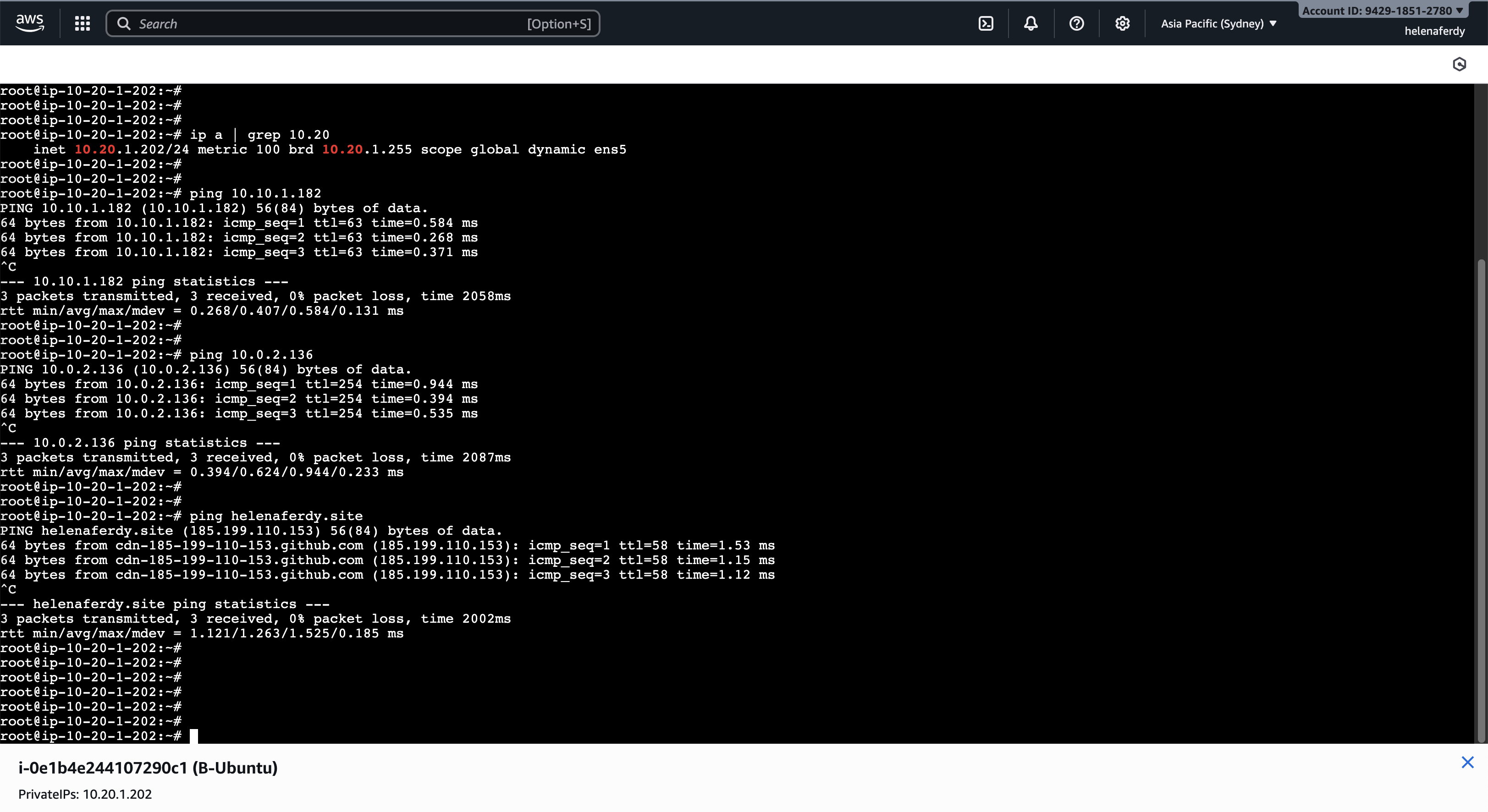

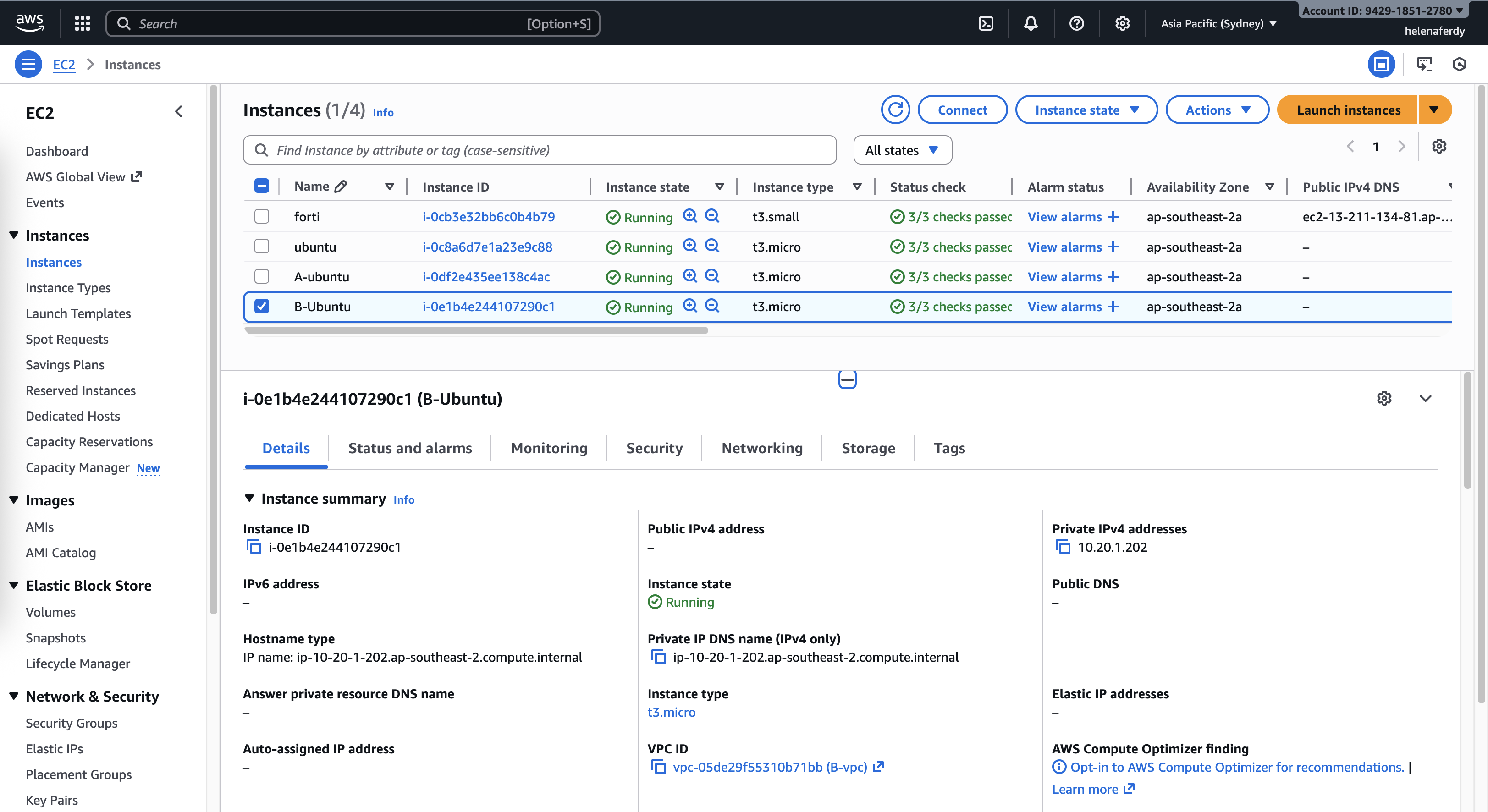

Same goes with the VPC B with ip of 10.20.1.202

This host can also access host on VPC A, VPC Helena and the Internet

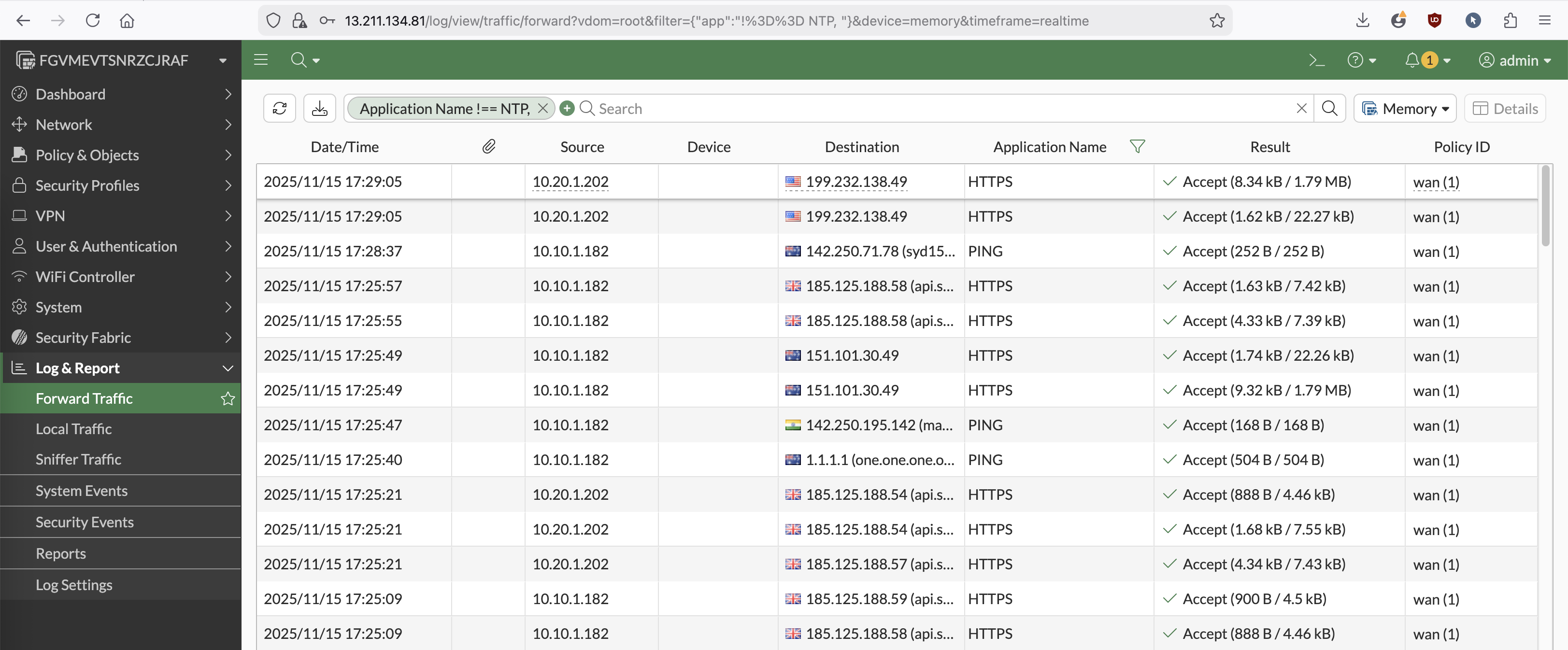

On the Fortigate Firewall, we can see the traffic traversing this device from hosts on VPC A & B to go to the internet
