Azure Application Gateway with WAF

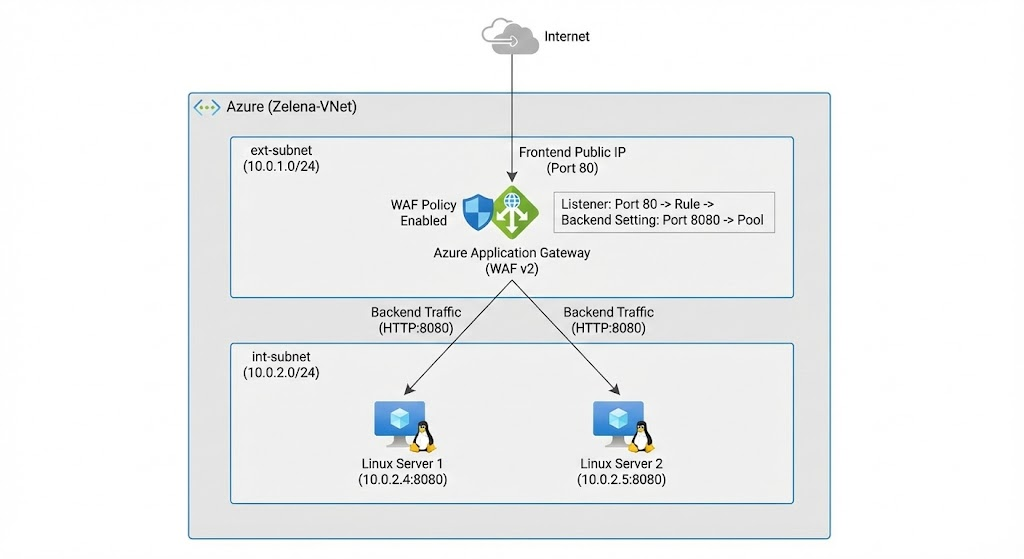

Azure Application Gateway is a Layer 7 (HTTP/HTTPS) load balancer that sits at the front of our application, accepts internet traffic on a public IP, and routes it to backend servers based on listener and routing rules. The Web Application Firewall (WAF) adds security by inspecting requests for common web attacks (SQL injection, XSS, OWASP threats) before forwarding clean traffic to the backend pool.

Application Gateway

Here we have 2 linux servers on the internal network hosting web on port 8080

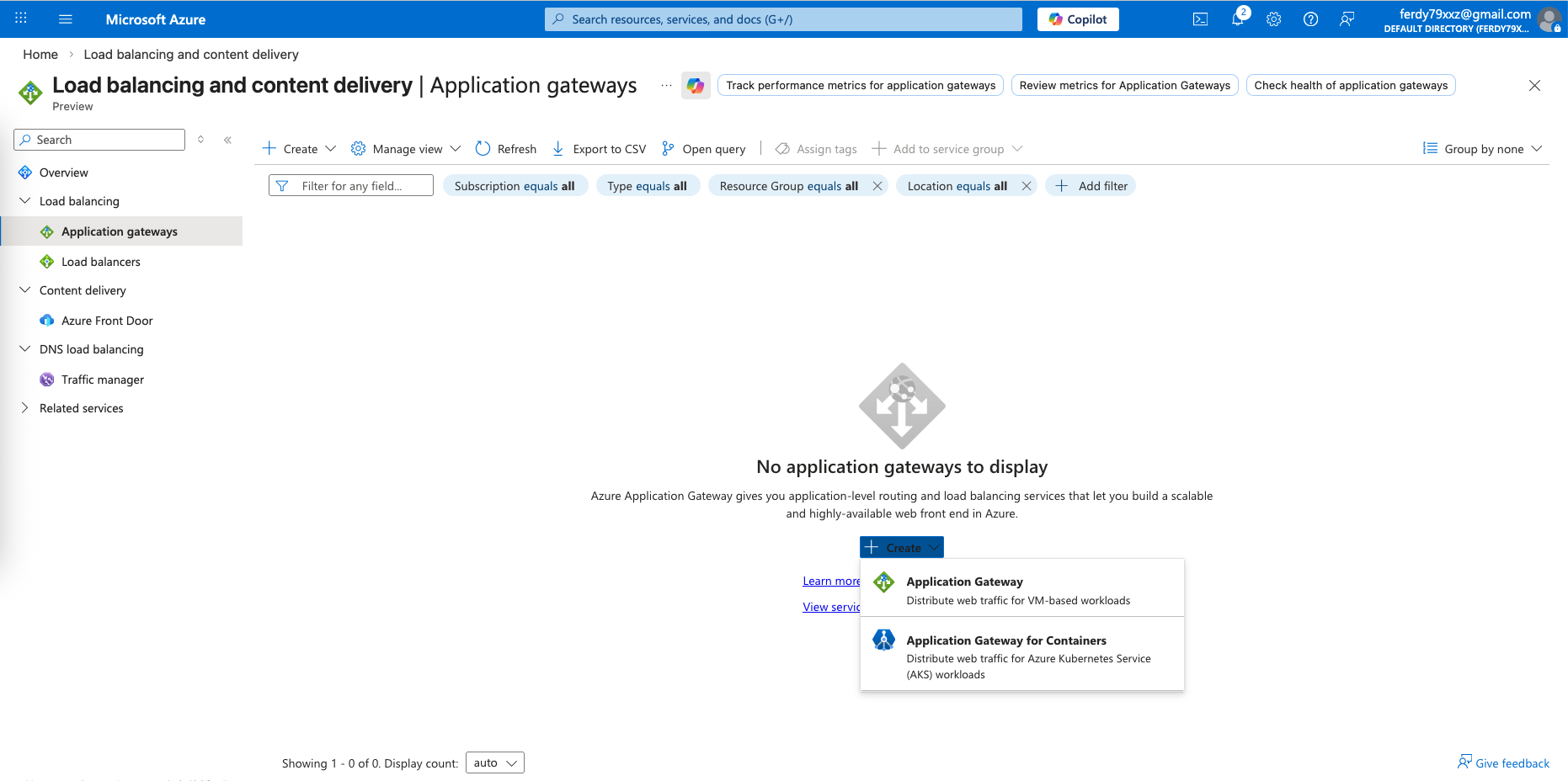

Next on the Application Gateways, create new

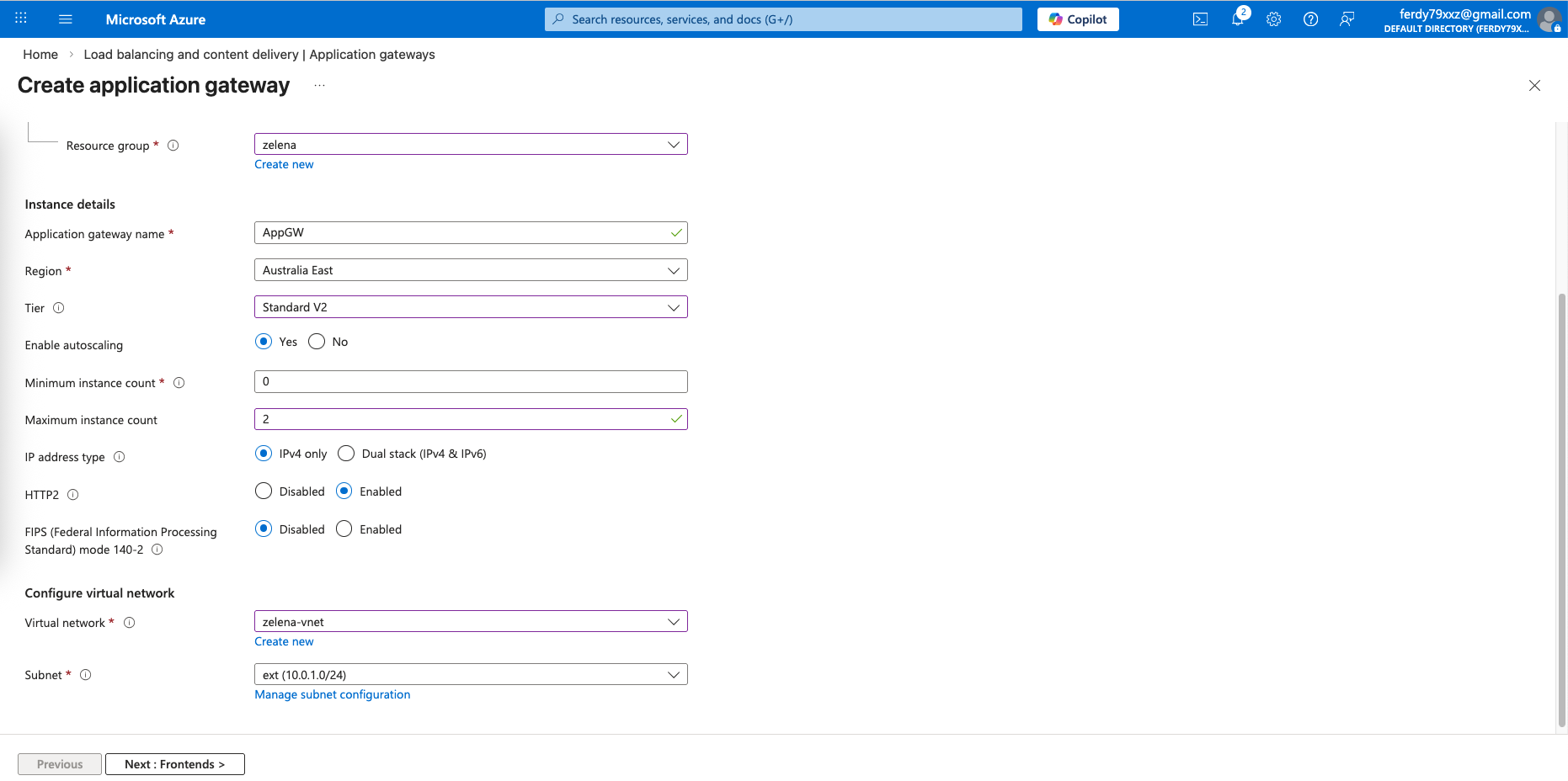

Here we will select Tier Standard first, before changing it later to enable WAF. We also place this App Gateway on the external subnet

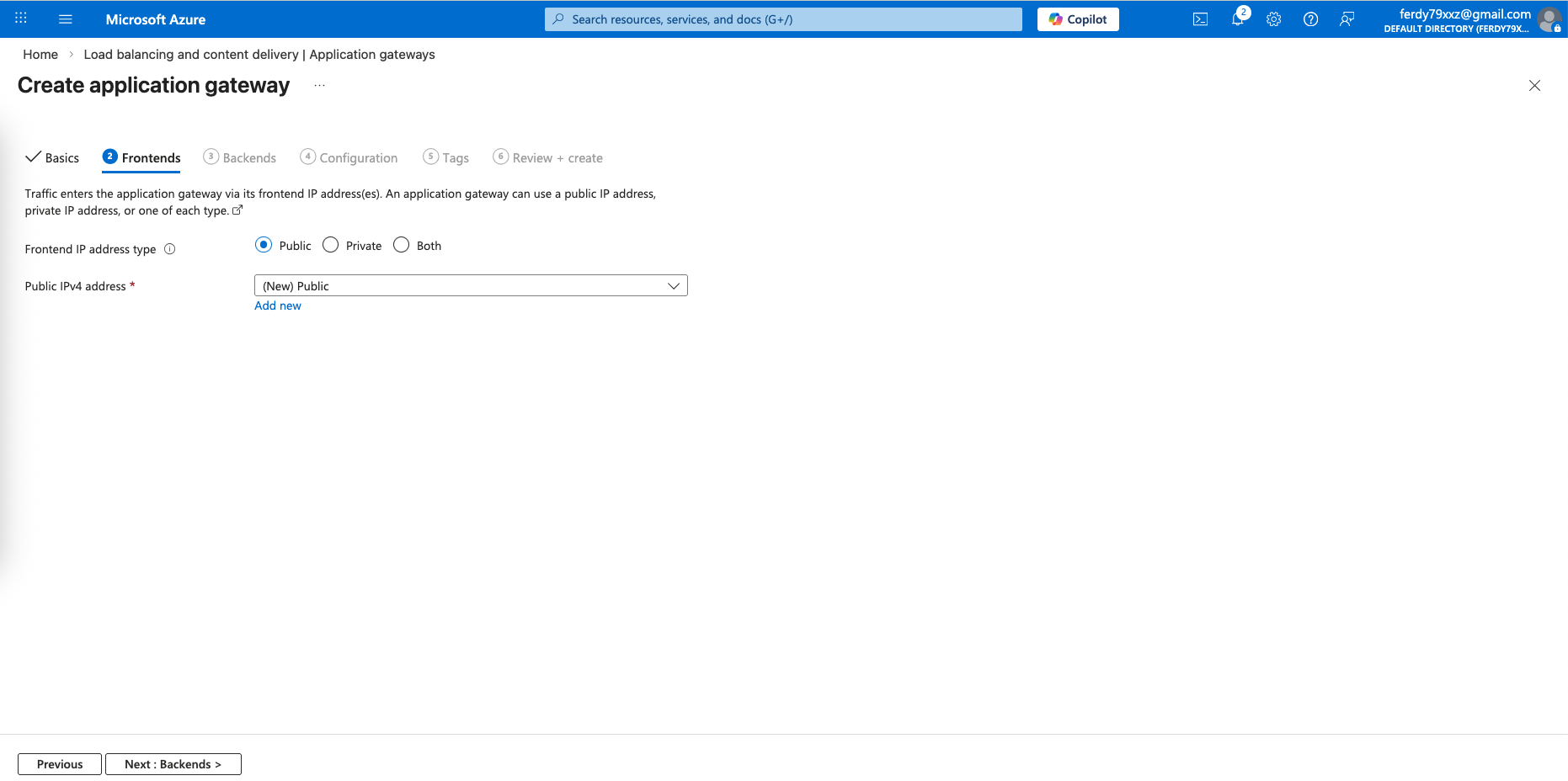

For the frontend, give it a Public IP Address

For the backend, point it to both our linux servers

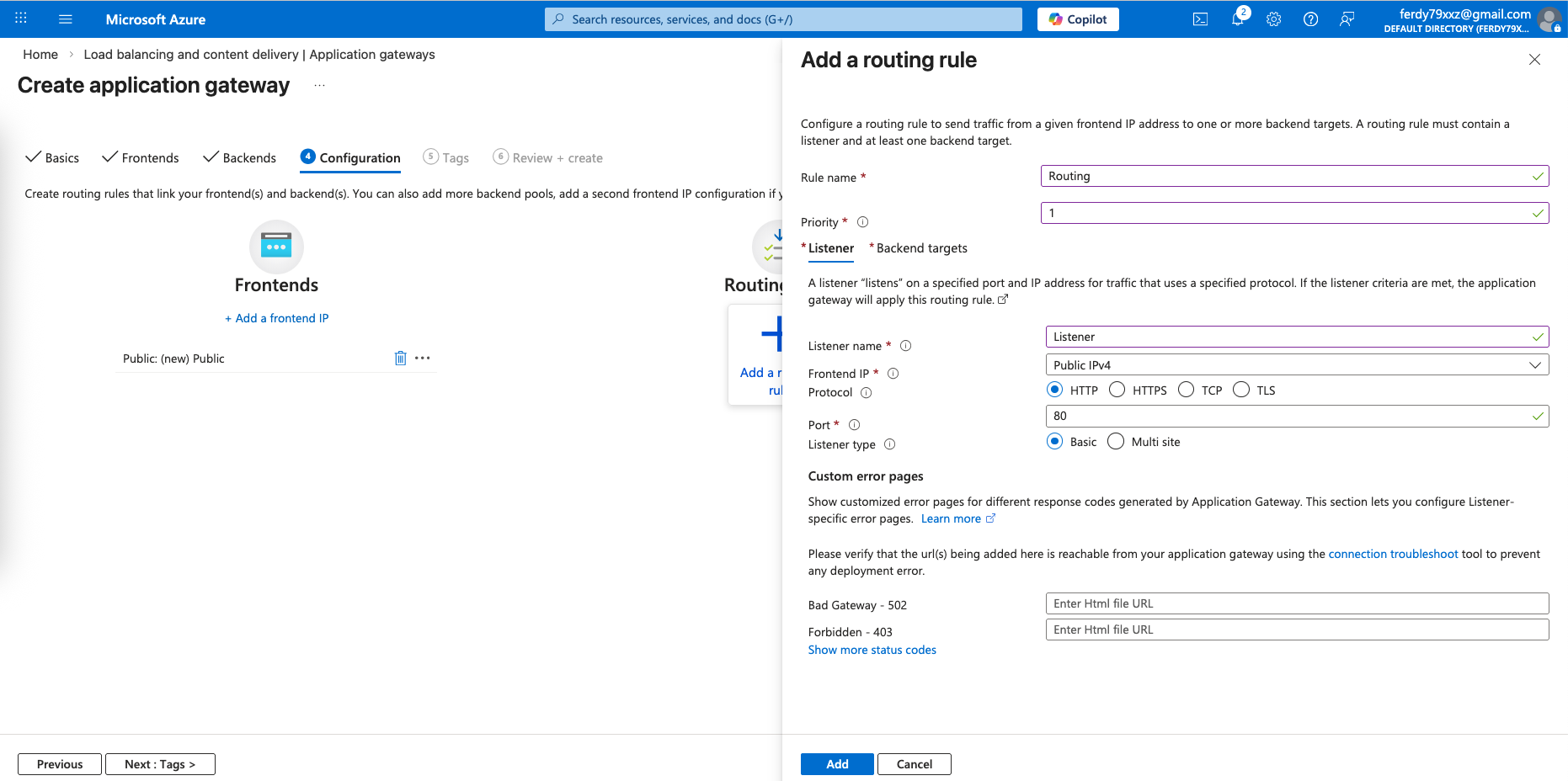

Next add a routing rule that listens on port 80 on frontend

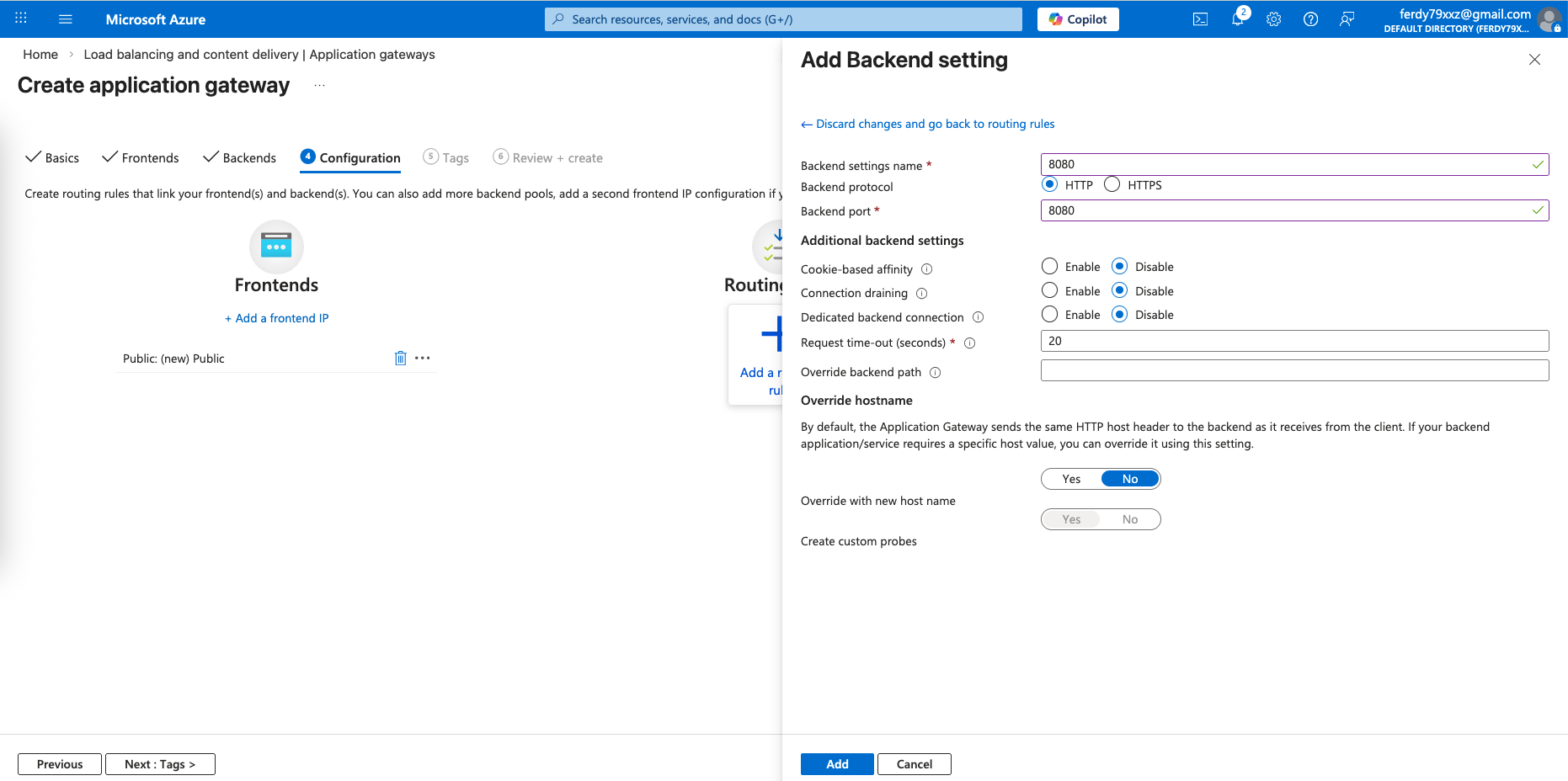

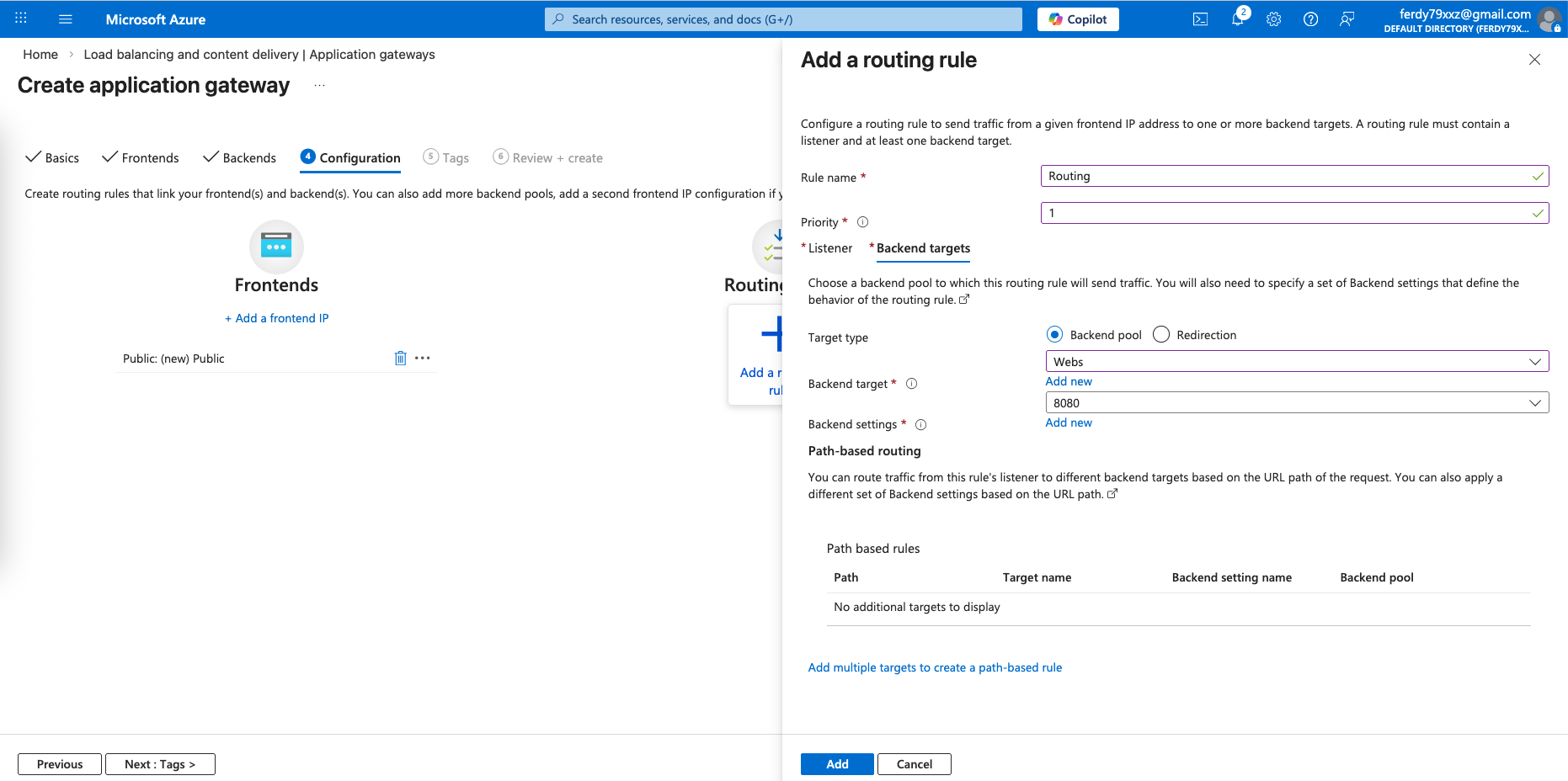

And route it to port 8080 on the backend

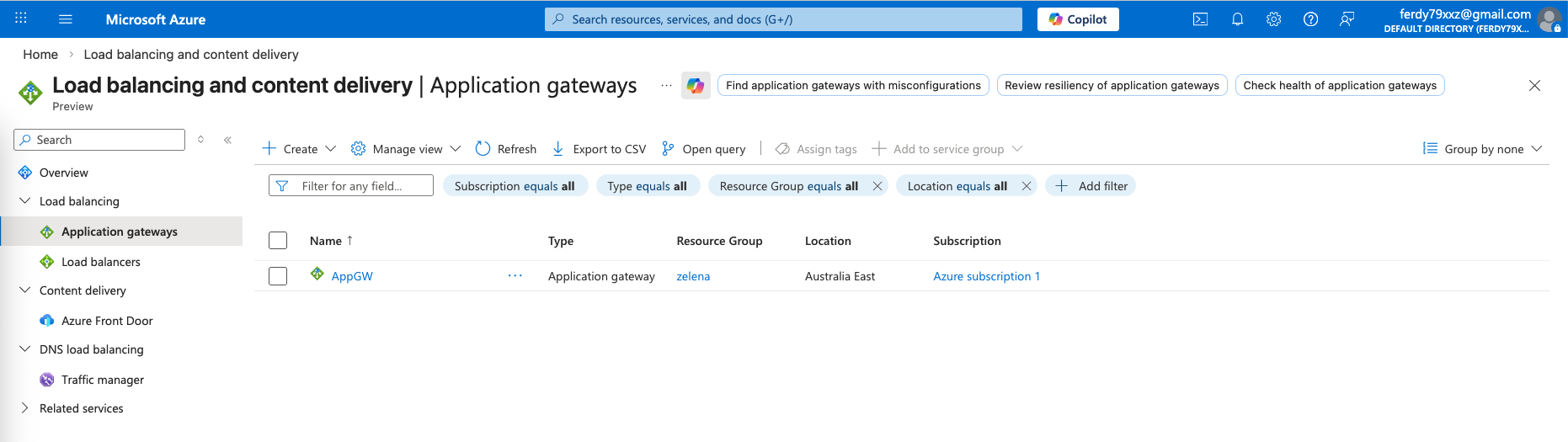

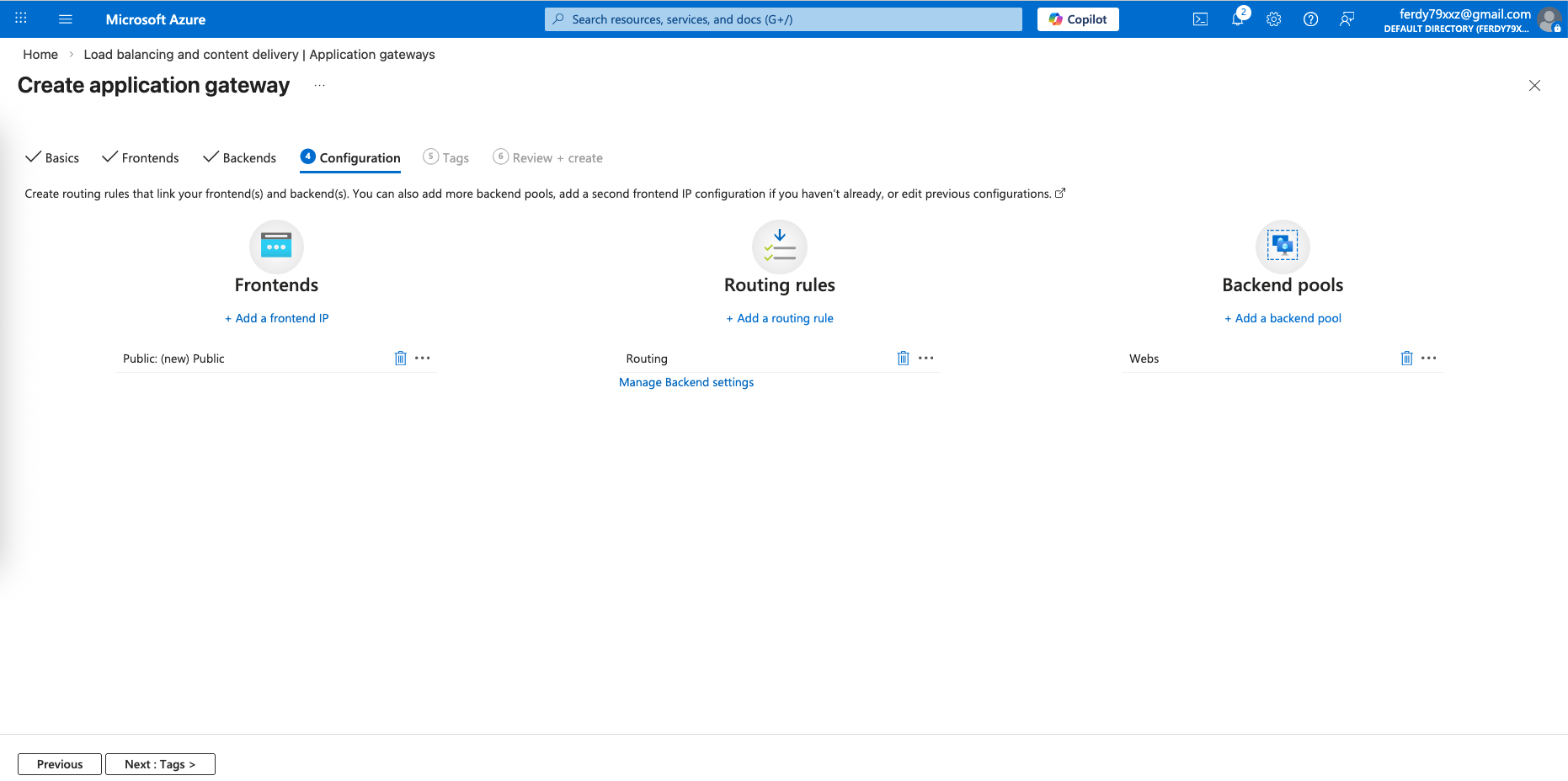

That should finish our Application Gateway configuration

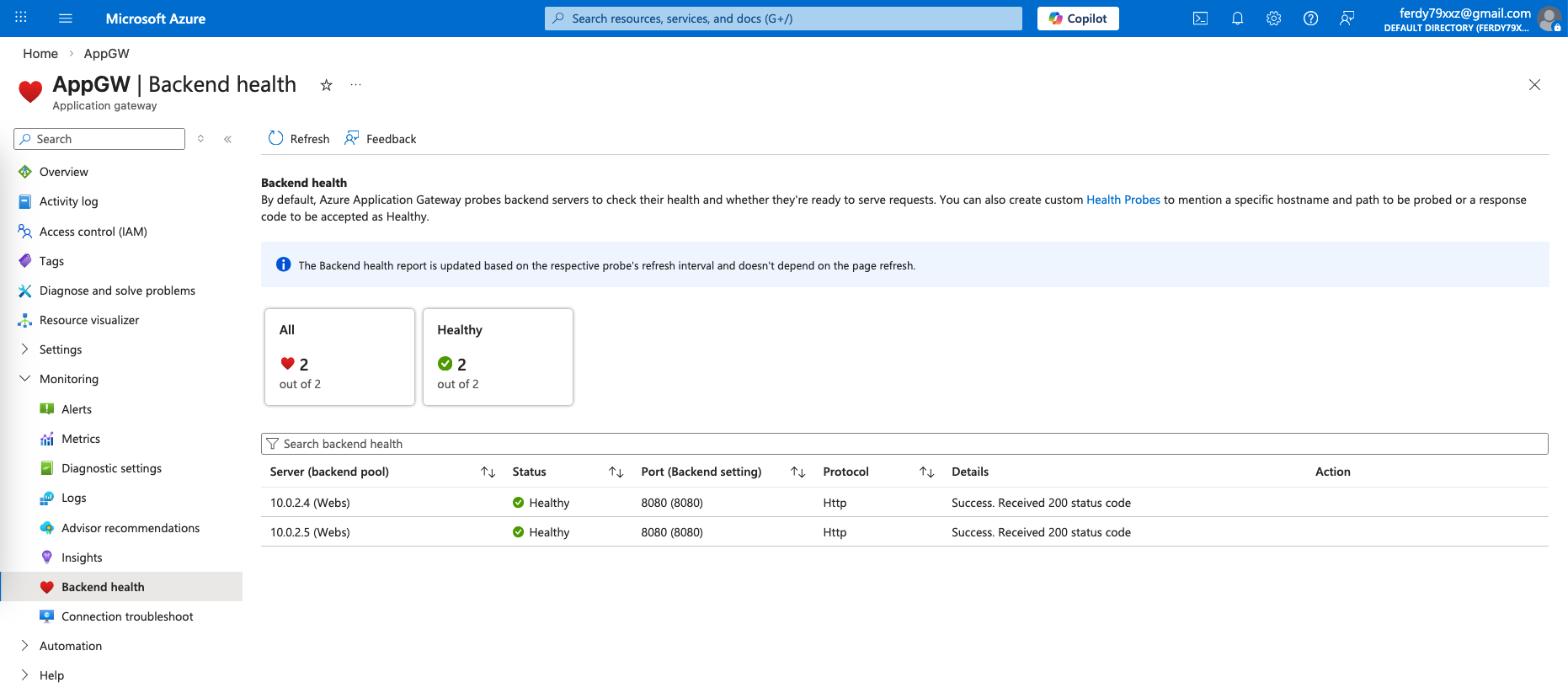

We can open the AppGW to see the health of the backend members

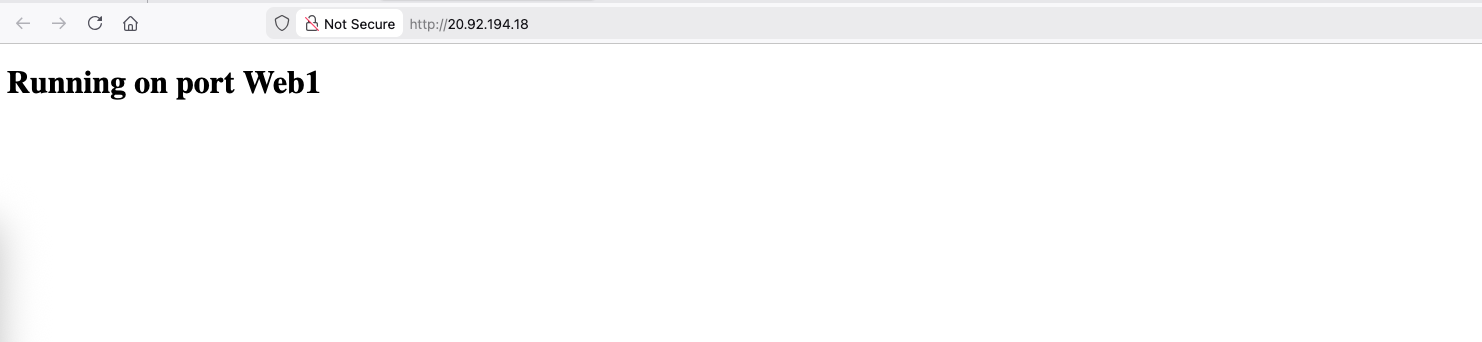

To test this, we visit the public IP on port 80, the traffic should be load balanced to our 2 linux servers

WAF

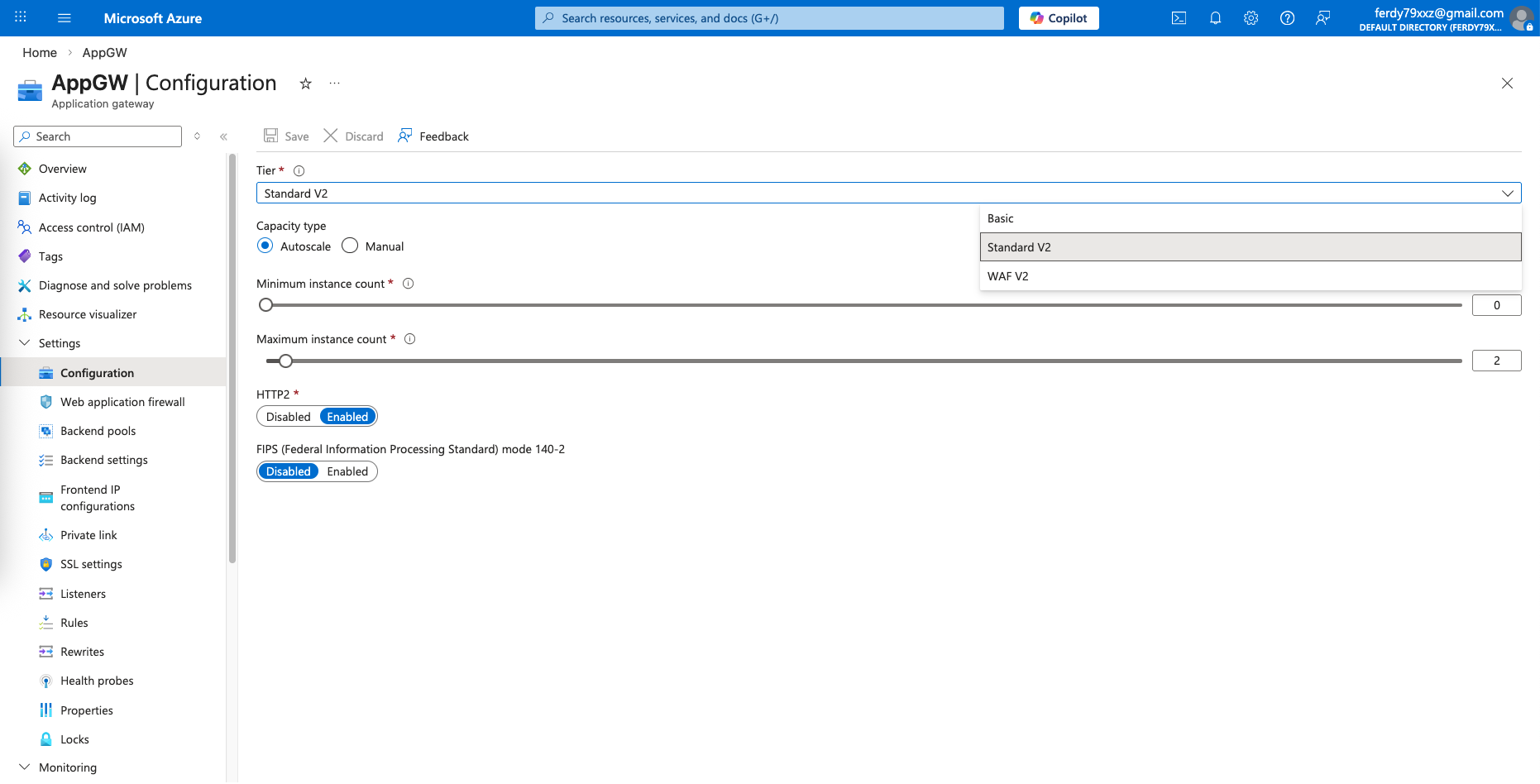

To enable WAF, we change the tier from Standard to WAF

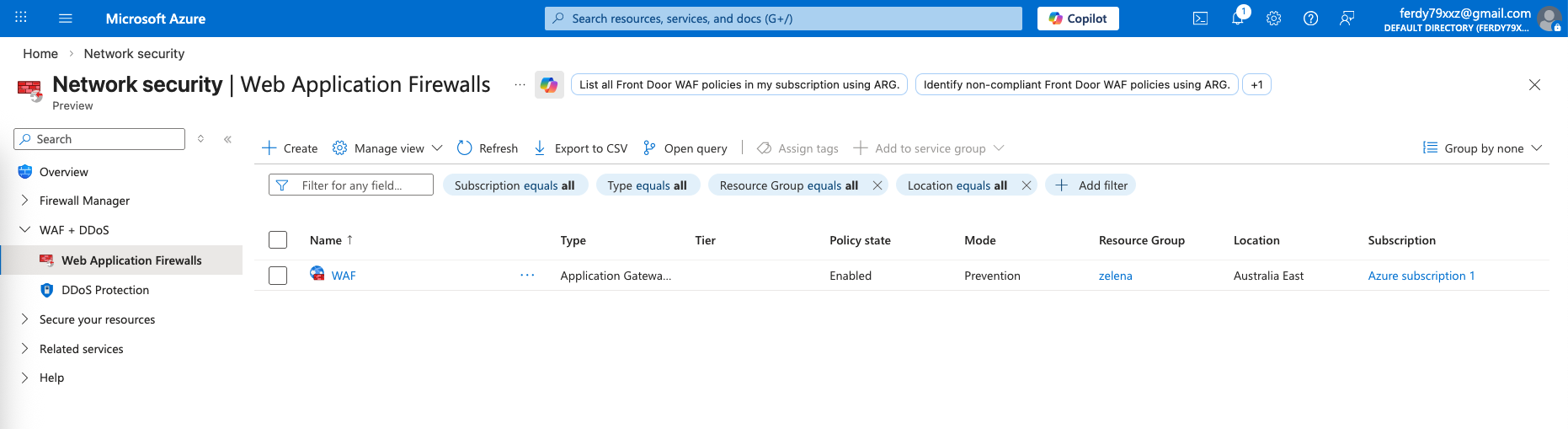

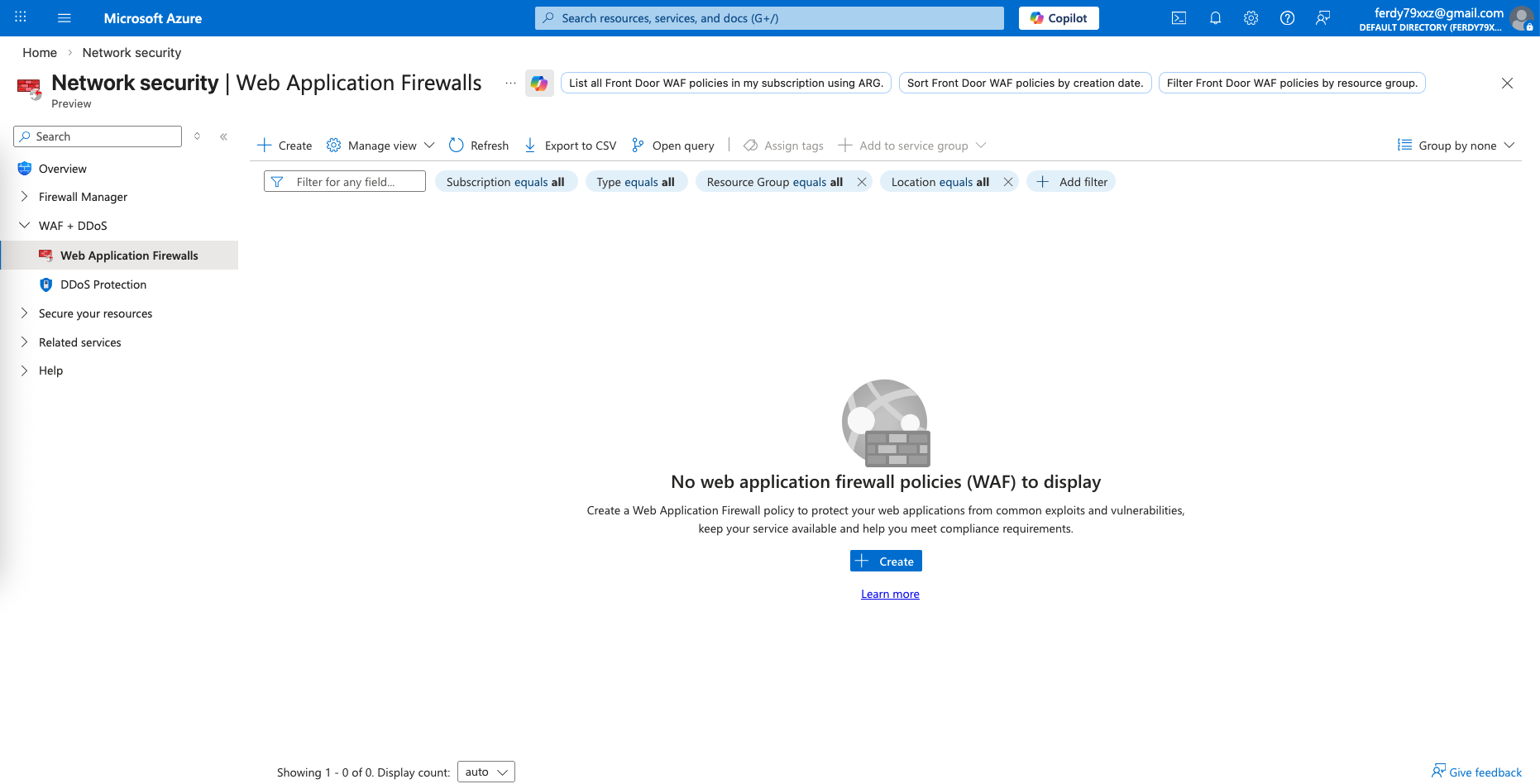

Then on Network Security, open Web Application Firewalls and create new

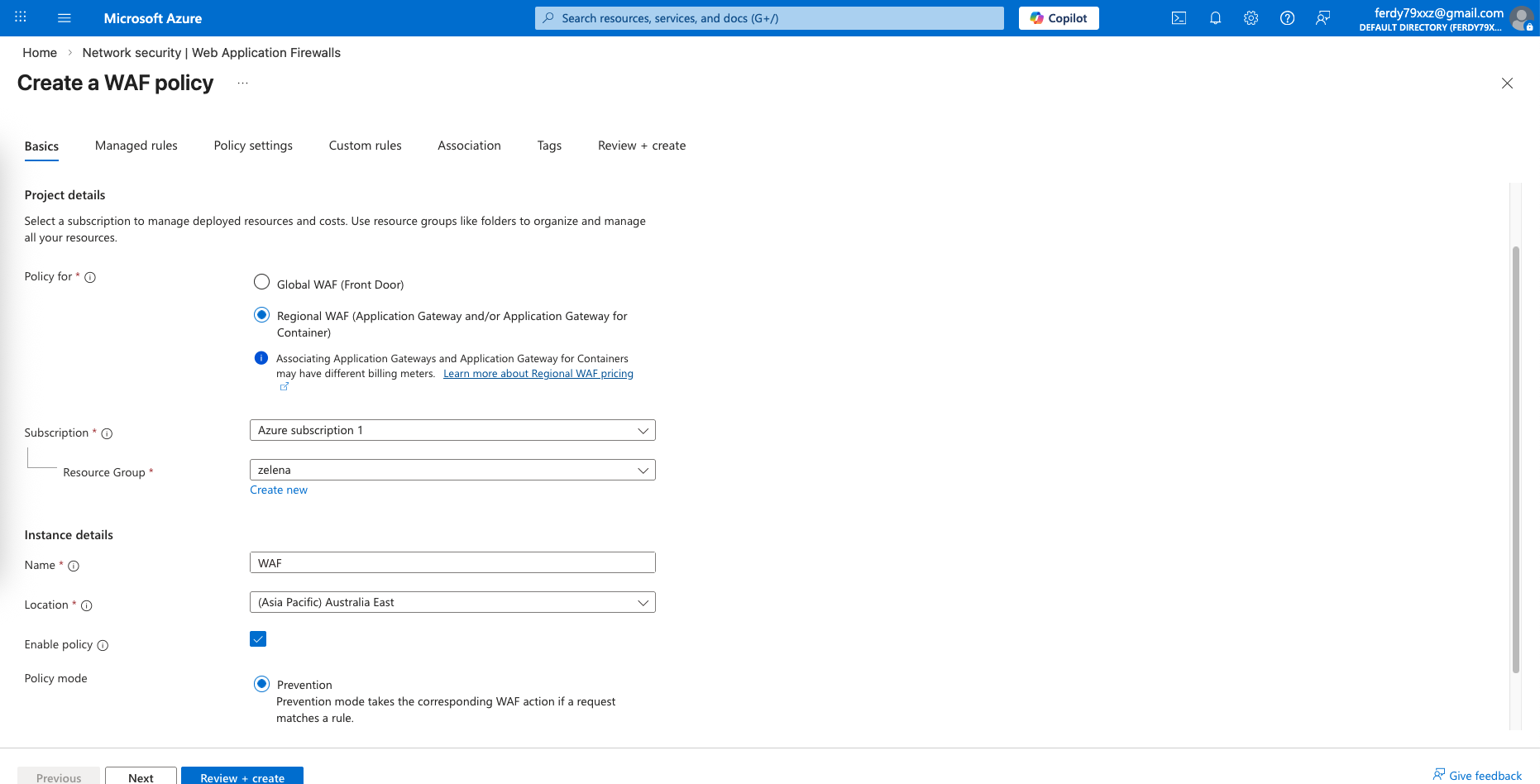

Select regional WAF and use Prevention mode

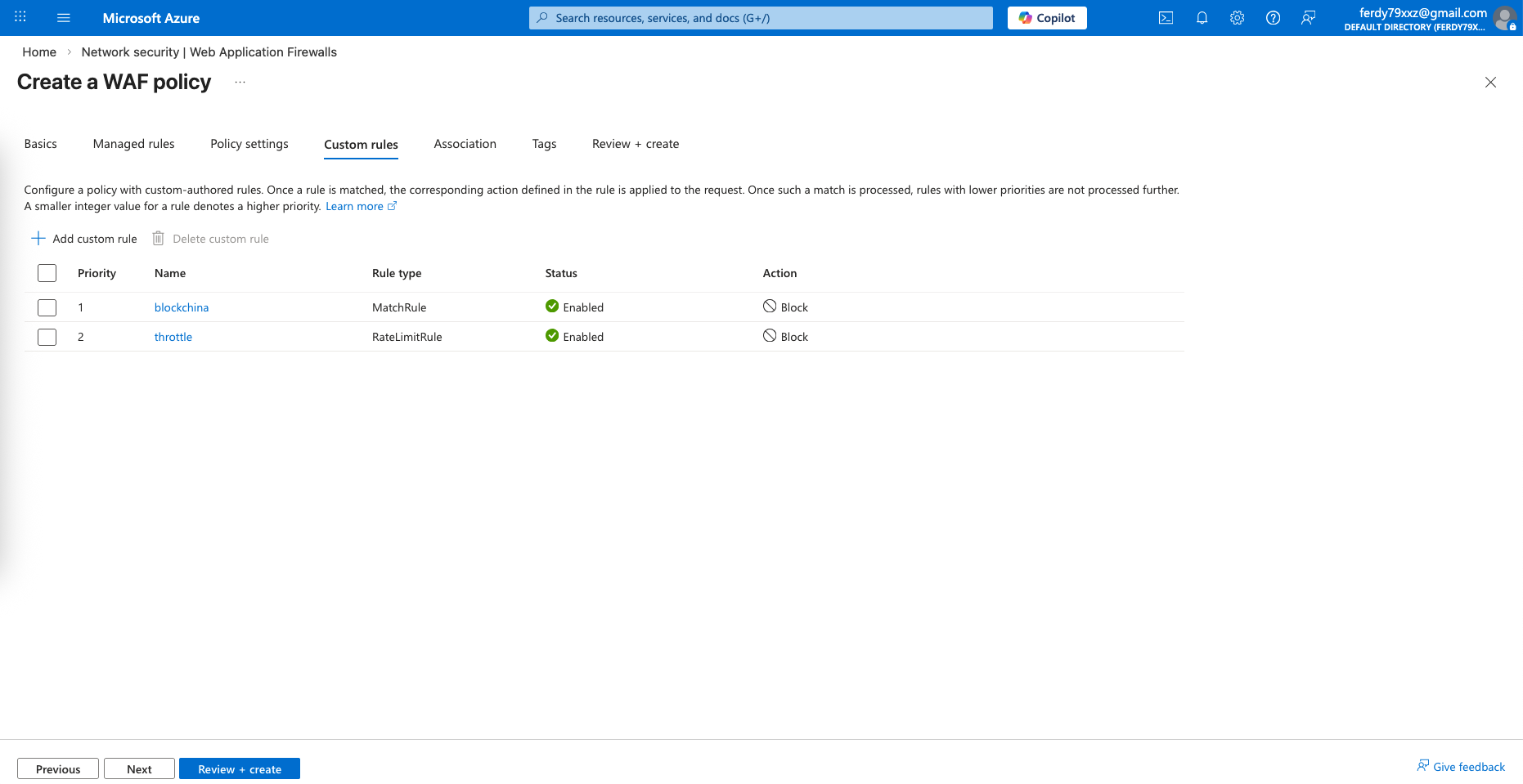

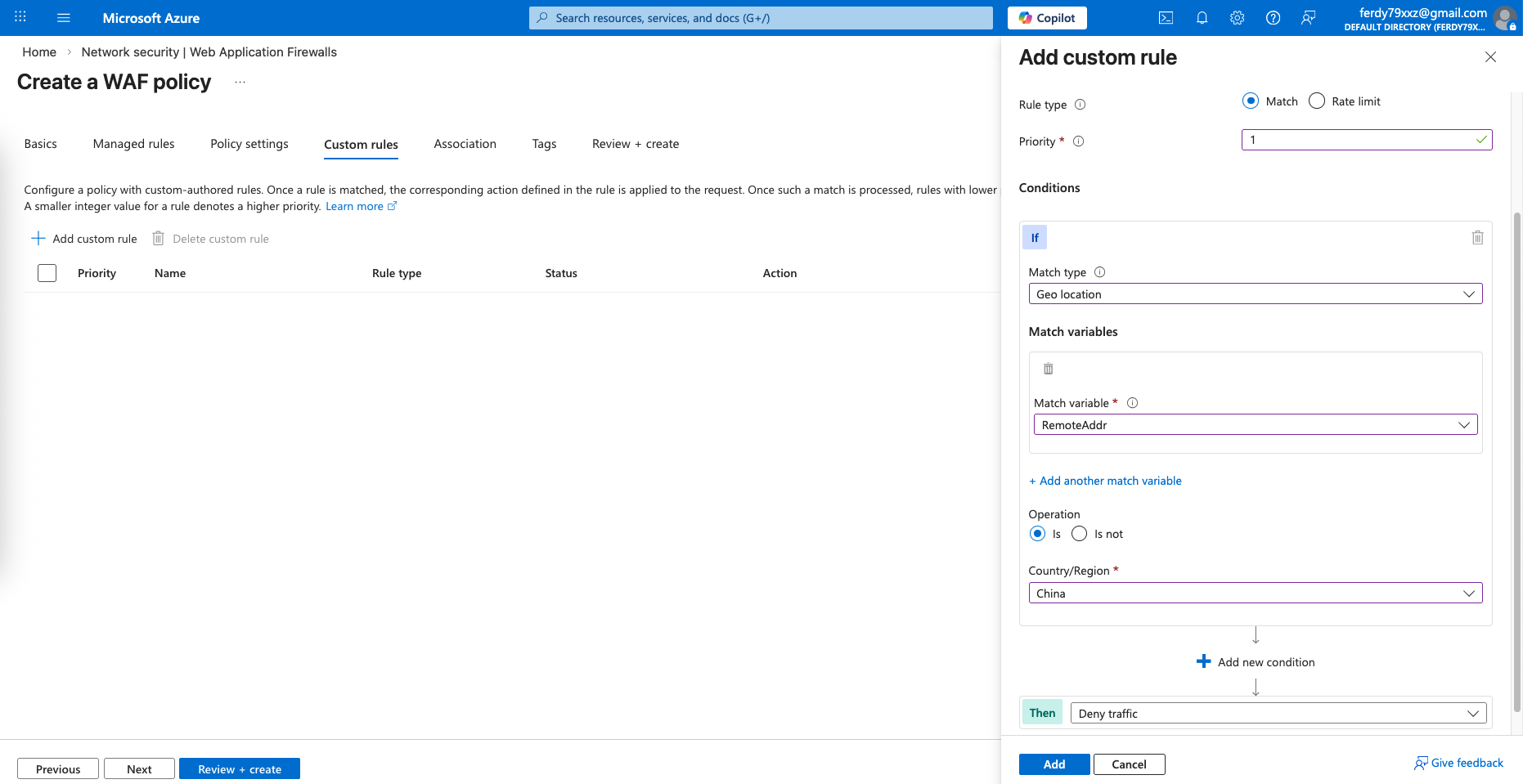

Next we will skip the default policies and create our own custom ones, the first policy is to block traffic from China

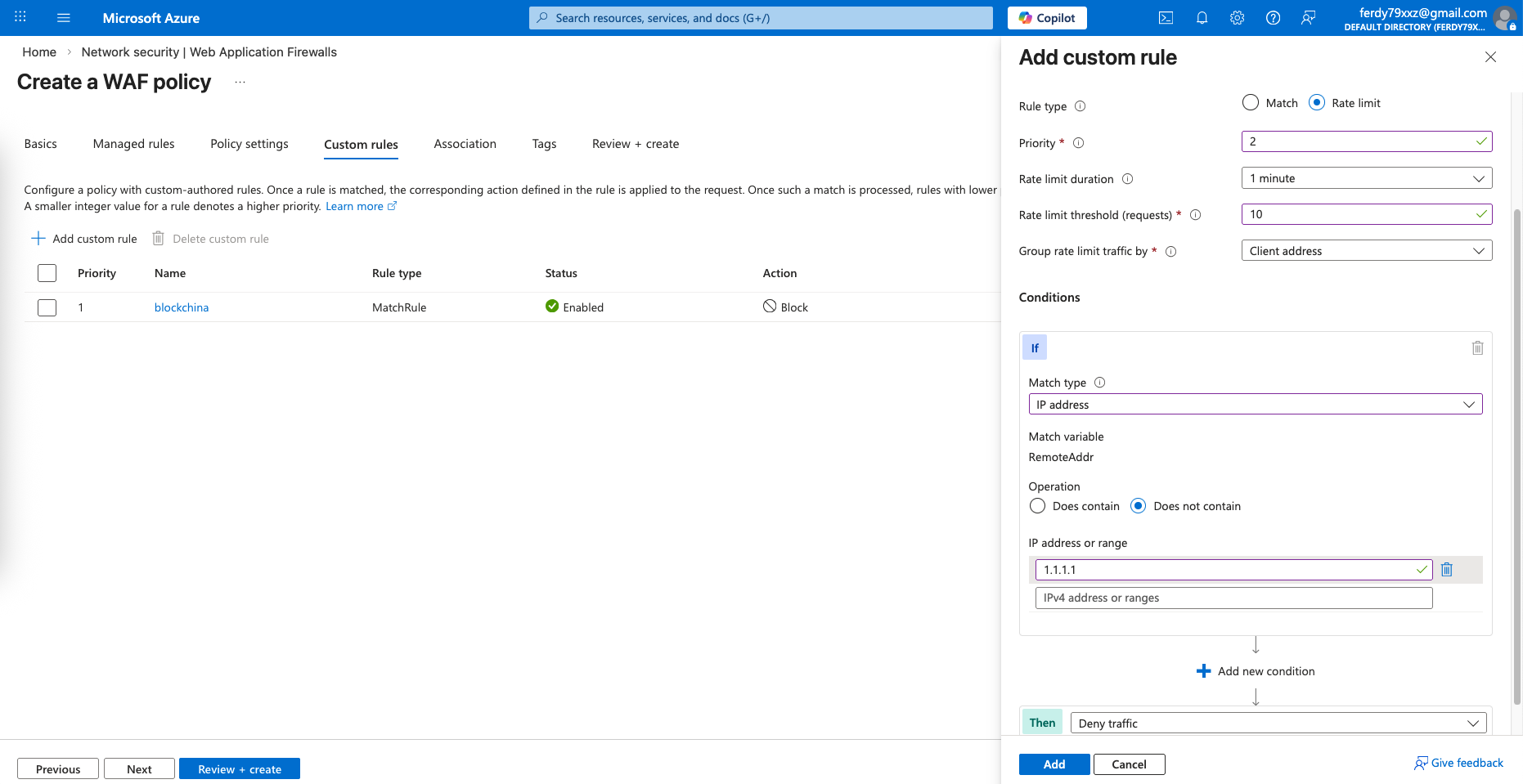

And the second one is to throttle limit connections

These 2 rules should be enough for this lab test

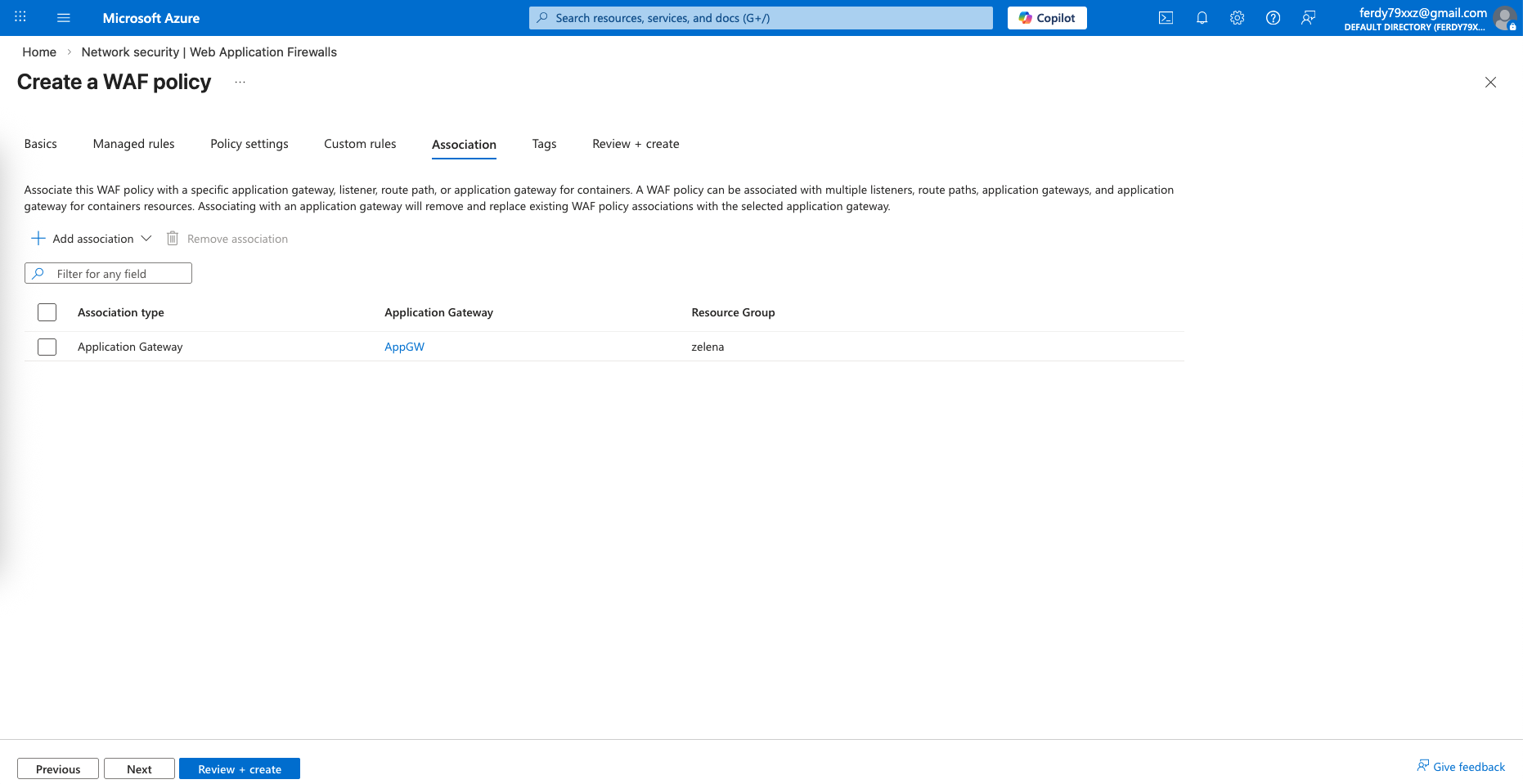

Next associate the WAF to our App Gateway

And that should finish our WAF configuration

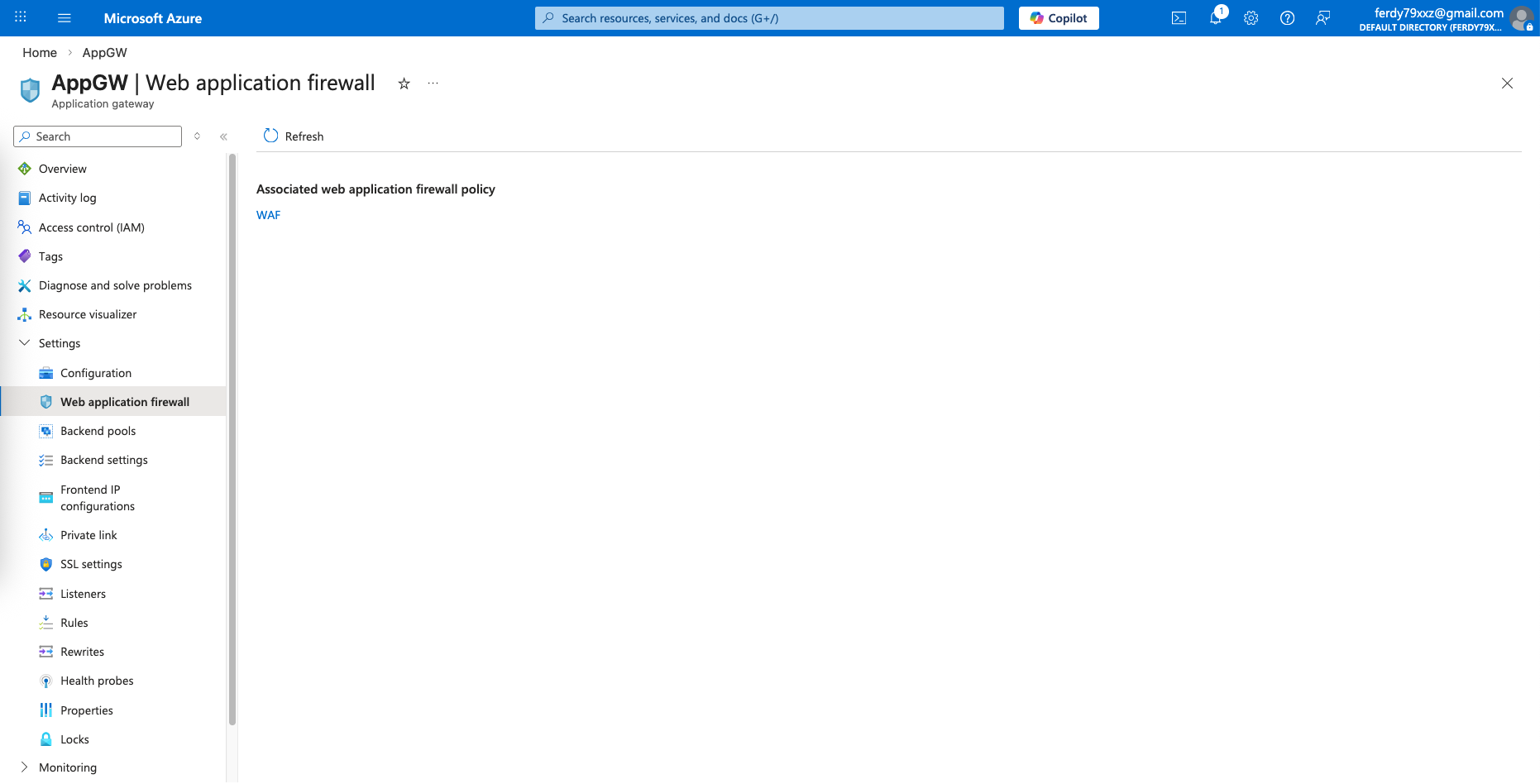

Because we associated it to our AppGW, when we open the AppGW it shows that our WAF is connected

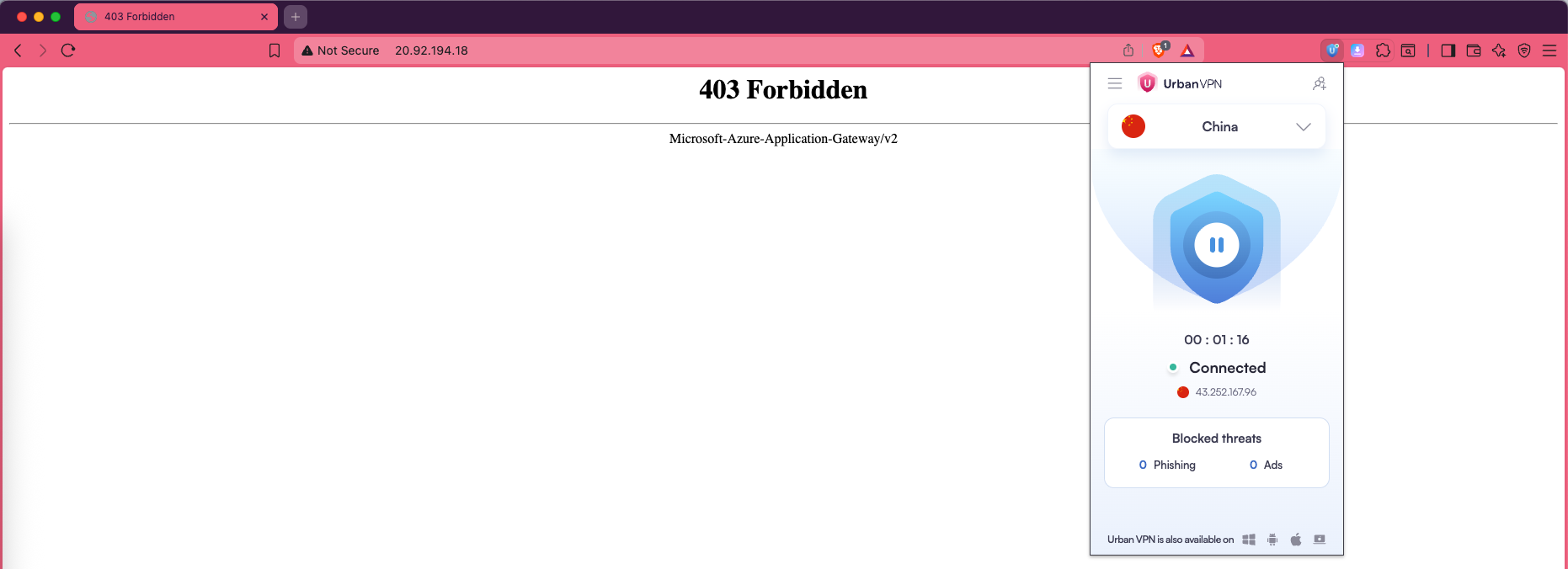

Now when we try accessing our web using China based VPN or when we try to brute force it, we should be denied
